In order to have a flat gain, we need bow-ties that, have a Ultra Wide Bandwidth.

Here is a whisker version.



Looks complicated to build.

Probably metal sheet metal version would be easier.

Due to my lack ability to draw this metal version. Am giving you a link to go to
a web page to see the graphic of it.

Sheet metal ultra wide bow-ties


Have created a nec version of 4 bay bow-ties using whiskers, not metal.

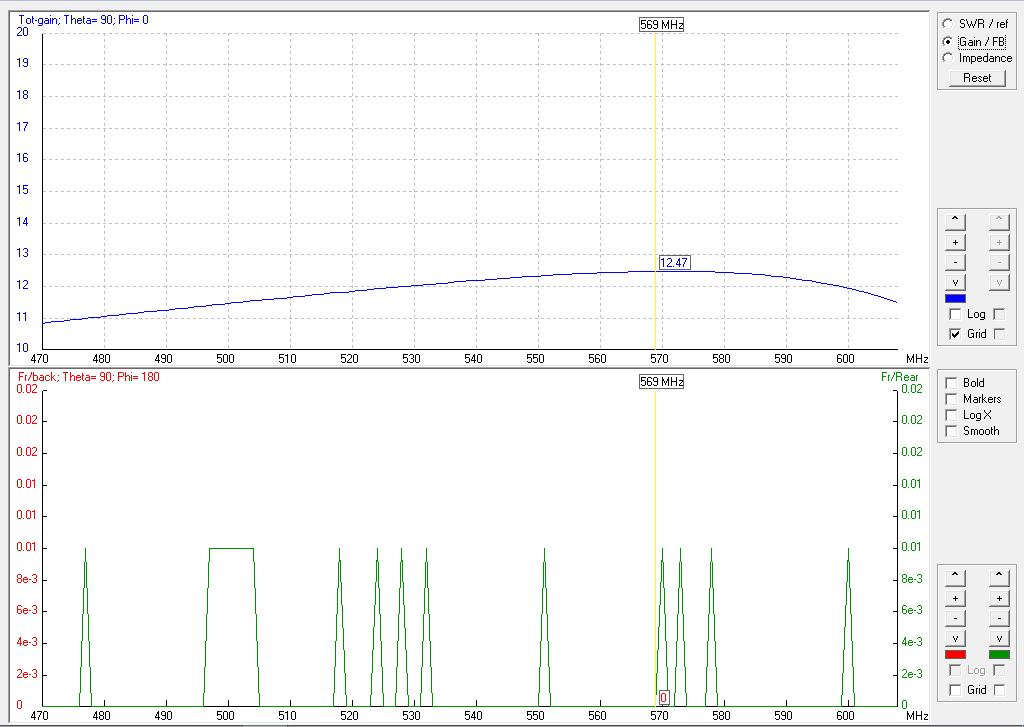

This version creates a half way decent gain cure.

Not a flat gain cure like the re-scaled Centipede-4 does, but a lot better then the regular 4 whiskers bow-ties.

The Centipede-4 antenna is very good, but it is huge.

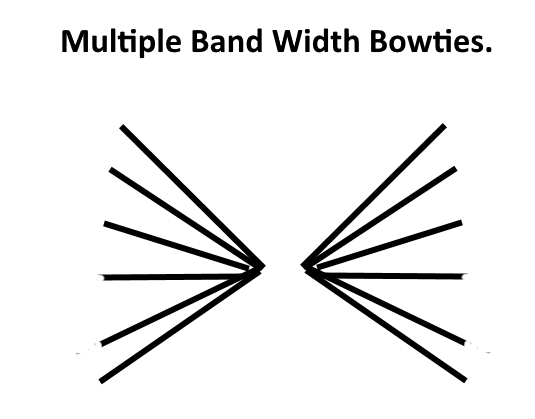

Multiband 4 bay bow-tie gain curve.



Here is the nec code of wide bandwidth bow-tie whiskers.

Code:
CM Kosmic SuperQuad 4-Bay, NO Reflector, 4nec2 by holl_ands, 1Mar2010
CM Simple SOURCE Wire. Autosegment(21).  Several "Too Sharp" Warnings.
CE
SY Rsrc=0.041    ' SOURCE wire Radius. Adjust for AGT=1.0: UHF=0.041 & HiVHF=0.041
SY Rbow=0.0625    ' Radius (in inches) of BOWTIE elements
SY Rfeed=0.0625    ' FEEDLINE wire Radius (in case they're different)
SY ZBowII=11.5059' Distance between the Centers of the two INNER bowties
SY ZBowOI=ZBowII    ' From Center of INNER bowtie to Center of OUTER bowtie
SY BowLen=11.2301    ' Bow Half-Length - Assume all SAME (Reality +/- 0.25+ in)
SY BowSep=1.515    ' Bow Tine Separation - Assume all SAME (Reality +/- 0.25 in)
SY BowSepO=4.70253    ' Bow Tine Separation - Assume all SAME (Reality +/- 0.25 in)
SY BowSepMid=3.4078    ' Bow Tine Separation - Assume all SAME (Reality +/- 0.25 in)
SY FedSep=1.25' Separation (in inches) between two FEEDLINE wires
SY Hop=1.25        ' Separation between Feedlines at Crossover
SY ZCross=4.875    ' From Center of Feedline Crossover to Center of OUTER bowtie
SY ZClen=4.0    ' From Center of Feedline Crossover to Inflection point
SY Cond=1.67e7    ' Conductivity (Copper=3.0e7, Alum=2.0e7, StainlessSteel=1.67e7)
' Calculated from above INPUT Values:
SY ZBowInr=ZBowII/2            ' Distance from antenna center to center of INNER bowtie
SY ZBowOut=ZBowII/2+ZBowOI    ' Distance from antenna center to center of OUTER bowtie
SY Z1=ZBowOut+BowSep/2
SY Z1Mid=ZBowOut+BowSepMid/2
SY Z1O=ZBowOut+BowSepO/2
SY Z2=ZBowOut
SY Z3=ZBowOut-BowSep/2
SY Z3Mid=ZBowOut-BowSepMid/2
SY Z3O=ZBowOut-BowSepO/2
SY Z4=ZBowOut-ZCross+ZClen    ' Very long crossover region
SY Z5=ZBowOut-ZCross
SY Z6=ZBowOut-ZCross-ZClen    ' Very long crossover region
SY Z7=ZBowInr+BowSep/2
SY Z7O=ZBowInr+BowSepO/2
SY Z7Mid=ZBowInr+BowSepMid/2
SY Z8=ZBowInr
SY Z9=ZBowInr-BowSep/2
SY Z9O=ZBowInr-BowSepO/2
SY Z9Mid=ZBowInr-BowSepMid/2
SY YBowN=-FedSep/2
SY YBowP=FedSep/2
SY YBow=(BowLen^2-(BowSep/2)^2)^0.5
SY YBowO=(BowLen^2-(BowSepO/2)^2)^0.5
SY YBowMid=(BowLen^2-(BowSepMid/2)^2)^0.5
SY Ymax=YBow+FedSep/2
SY YmaxO=YBowO+FedSep/2
SY YmaxMid=YBowMid+FedSep/2
'  #    segs    X1      Y1    Z1    X2      Y2        Z2    radius
' SIMULATED BALUN SOURCE ON GW1:
GW 1    3    0.0    YBowN    0.0    0.0    YBowP        0.0    Rsrc
' GW2 Not used
' GW3 Not used
' INNER BOWTIES:
GW  4    21    0.0    Ymax     Z7    0.0        YBowP         Z8    Rbow
GW  5    21    0.0    Ymax     Z9    0.0        YBowP         Z8    Rbow
GW  44    21    0.0    YmaxO     Z7O    0.0        YBowP         Z8    Rbow
GW  45    21    0.0    YmaxO     Z9O    0.0        YBowP         Z8    Rbow
GW  56    21    0.0    YmaxMid     Z7Mid    0.0        YBowP         Z8    Rbow
GW  57    21    0.0    YmaxMid     Z9Mid    0.0        YBowP         Z8    Rbow
GW  6    21    0.0    YBowN     Z8    0.0        -Ymax         Z7    Rbow
GW  7    21    0.0    YBowN     Z8    0.0        -Ymax         Z9    Rbow
GW  46    21    0.0    YBowN     Z8    0.0        -YmaxO         Z7O    Rbow
GW  47    21    0.0    YBowN     Z8    0.0        -YmaxO         Z9O    Rbow
GW  58    21    0.0    YBowN     Z8    0.0        -YmaxMid         Z7Mid    Rbow
GW  59    21    0.0    YBowN     Z8    0.0        -YmaxMid         Z9Mid    Rbow
GW  8    21    0.0    Ymax    -Z7    0.0        YBowP        -Z8    Rbow
GW  9    21    0.0    Ymax    -Z9    0.0        YBowP        -Z8    Rbow
GW  48    21    0.0    YmaxO    -Z7O    0.0        YBowP        -Z8    Rbow
GW  49    21    0.0    YmaxO    -Z9O    0.0        YBowP        -Z8    Rbow
GW  70    21    0.0    YmaxMid    -Z7Mid    0.0        YBowP        -Z8    Rbow
GW  71    21    0.0    YmaxMid    -Z9Mid    0.0        YBowP        -Z8    Rbow
GW 10    21    0.0    YBowN    -Z8    0.0        -Ymax        -Z7    Rbow
GW 11    21    0.0    YBowN    -Z8    0.0        -Ymax        -Z9    Rbow
GW 50    21    0.0    YBowN    -Z8    0.0        -YmaxO        -Z7O    Rbow
GW 51    21    0.0    YBowN    -Z8    0.0        -YmaxO        -Z9O    Rbow
GW 60    21    0.0    YBowN    -Z8    0.0        -YmaxMid        -Z7Mid    Rbow
GW 61    21    0.0    YBowN    -Z8    0.0        -YmaxMid        -Z9Mid    Rbow
' OUTER BOWTIES:
GW 12    21    0.0    Ymax     Z1        0.0        YBowP         Z2    Rbow
GW 13    21    0.0    Ymax     Z3        0.0        YBowP         Z2    Rbow
GW 40    21    0.0    YmaxO     Z1O    0.0        YBowP         Z2    Rbow
GW 41    21    0.0    YmaxO     Z3O    0.0        YBowP         Z2    Rbow
GW 62    21    0.0    YmaxMid     Z1Mid    0.0        YBowP         Z2    Rbow
GW 63    21    0.0    YmaxMid     Z3Mid    0.0        YBowP         Z2    Rbow
GW 14    21    0.0    YBowN     Z2    0.0        -Ymax         Z1    Rbow
GW 15    21    0.0    YBowN     Z2    0.0        -Ymax         Z3    Rbow
GW 42    21    0.0    YBowN     Z2    0.0        -YmaxO         Z1O    Rbow
GW 43    21    0.0    YBowN     Z2    0.0        -YmaxO         Z3O    Rbow
GW 64    21    0.0    YBowN     Z2    0.0        -YmaxMid         Z1Mid    Rbow
GW 65    21    0.0    YBowN     Z2    0.0        -YmaxMid         Z3Mid    Rbow
GW 16    21    0.0    Ymax    -Z1    0.0        YBowP        -Z2    Rbow
GW 17    21    0.0    Ymax    -Z3    0.0        YBowP        -Z2    Rbow
GW 52    21    0.0    Ymax    -Z1O    0.0        YBowP        -Z2    Rbow
GW 53    21    0.0    Ymax    -Z3O    0.0        YBowP        -Z2    Rbow
GW 66    21    0.0    Ymax    -Z1Mid    0.0        YBowP        -Z2    Rbow
GW 67    21    0.0    Ymax    -Z3Mid    0.0        YBowP        -Z2    Rbow
GW 18    21    0.0    YBowN    -Z2    0.0        -Ymax        -Z1    Rbow
GW 19    21    0.0    YBowN    -Z2    0.0        -Ymax        -Z3    Rbow
GW 54    21    0.0    YBowN    -Z2    0.0        -YmaxO        -Z1O    Rbow
GW 55    21    0.0    YBowN    -Z2    0.0        -YmaxO        -Z3O    Rbow
GW 68    21    0.0    YBowN    -Z2    0.0        -YmaxMid        -Z1Mid    Rbow
GW 69    21    0.0    YBowN    -Z2    0.0        -YmaxMid        -Z3Mid    Rbow
' CROSS-OVER FEEDLINE:
GW 20     3    0.0    YBowP     Z2    0.0        YBowP         Z4    Rfeed
GW 21     3    0.0    YBowN     Z2    0.0        YBowN         Z4    Rfeed
GW 22     1    0.0    YBowP     Z6    0.0        YBowP         Z8    Rfeed
GW 23     1    0.0    YBowN     Z6    0.0        YBowN         Z8    Rfeed
GW 24     9    0.0    YBowN     Z6    Hop/2        0.0         Z5    Rfeed
GW 25     9    0.0    YBowP     Z4    Hop/2        0.0         Z5    Rfeed
GW 26     9    0.0    YBowP     Z6    -Hop/2    0.0         Z5    Rfeed
GW 27     9    0.0    YBowN     Z4    -Hop/2    0.0         Z5    Rfeed
GW 28     3    0.0    YBowP    -Z2    0.0        YBowP        -Z4    Rfeed
GW 29     3    0.0    YBowN    -Z2    0.0        YBowN        -Z4    Rfeed
GW 30     1    0.0    YBowP    -Z6    0.0        YBowP        -Z8    Rfeed
GW 31     1    0.0    YBowN    -Z6    0.0        YBowN        -Z8    Rfeed
GW 32     9    0.0    YBowN    -Z6    -Hop/2    0.0        -Z5    Rfeed
GW 33     9    0.0    YBowP    -Z4    -Hop/2    0.0        -Z5    Rfeed
GW 34     9    0.0    YBowP    -Z6    Hop/2        0.0        -Z5    Rfeed
GW 35     9    0.0    YBowN    -Z4    Hop/2        0.0        -Z5    Rfeed
GW 36     11    0.0    YBowP     Z8    0.0        YBowP        0.0    Rfeed
GW 37     11    0.0    YBowN     Z8    0.0        YBowN        0.0    Rfeed
GW 38     11    0.0    YBowP    -Z8    0.0        YBowP        0.0    Rfeed
GW 39     11     0.0    YBowN    -Z8    0.0        YBowN        0.0    Rfeed
GS 0 0 0.0254            ' Convert above from INCHES to METERS for NEC
GE 0                    ' No Ground Plane
EK 0                    ' Enable Extended Kernel
LD 5 0 0 0 Cond 0            ' Conductivity
EX 0 1 2 0 1 0            ' GW1 is SOURCE wire
GN -1                    ' Free Space
' FR Freq Sweep choices in order of increasing calculation time (fm holl_ands):
' FR 0 0 0 0 470 0        ' Fixed Freq
FR 0 29 0 0 470 12        ' Freq Sweep 470-806 every 12 MHz - OLD UHF BAND
' FR 0 34 0 0 410 12        ' Freq Sweep 410-806 every 12 MHz - Even Wider Sweep
' FR 0 39 0 0 470 6        ' Freq Sweep 470-698 every 6 MHz - PREFERRED FOR UHF
' FR 0 77 0 0 470 3        ' Freq Sweep 470-698 every 3 MHz
' FR 0 153 0 0 470 1.5        ' Freq Sweep 470-698 every 1.5 MHz
' FR 0 71 0 0 300 10        ' Freq Sweep 300-1000 every 10 MHz - WIDEBAND SWEEP
' FR Hi-VHF choices:
' FR 0 15 0 0 174 3        ' Freq Sweep 174-216 every 3 MHz
' FR 0 29 0 0 174 1.5        ' Freq Sweep 174-216 every 1.5 MHz - PREFERRED
' FR 0 43 0 0 174 1        ' Freq Sweep 174-216 every 1 MHz - Hi-Rez
' FR 0 26 0 0 150 6        ' Freq Sweep 150-300 every 6 MHz - WIDEBAND SWEEP
' FR Lo-VHF choices:
' FR 0 35 0 0 54 1        ' Frequency Sweep every 1 MHz for Ch2-6
' FR 0 36 0 0 75 1        ' Frequency Sweep every 1 MHz for Ch5 + Ch6 + FM
' FR 0 28 0 0 54 6        ' Wide Freq Sweep every 6 MHz for Ch2-13
' FR 0 64 0 0 54 12        ' Super Wide Freq Sweep 54-810 every 12 MHz
' RP choices in order of increasing calculation time:
' RP 0 1 1 1510 90 90 1 1 0 0    ' 1D Gain toward 0-deg Azimuth - SIDE GAIN
' RP 0 1 1 1510 90 0 1 1 0 0        ' 1D Gain toward 90-deg Azimuth - FORWARD GAIN
' RP 0 1 1 1510 90 180 1 1 0 0    ' 1D Gain toward 270-deg Azimuth - REVERSE GAIN
' RP 0 1 37 1510 90 0 1 5 0 0     ' 2D (Left only) Azimuthal Gain Slice
RP 0 1 73 1510 90 0 1 5 0 0         ' 2D Azimuthal Gain Slice - PREFERRED
' RP 0 73 1 1510 90 0 5 1 0 0     ' 2D Elevation Gain Slice
' RP 0 73 73 1510 90 0 5 5 0 0     ' 3D Lower Hemisphere reveals antenna (use Fixed Freq)



Let's use Ultra Wide-band bow-ties for our 4 bay bow-tie antennas.


·
Registered
Joined
·
133 Posts
Are you using AutoSeg and if so, how many segments per wavelength? If your not using AutoSeg, why are wire 52, 53, 60, and 61 set to 1 segment? This is causing these wires to have segments, that are much longer than other wires, and is causing errors in your model. It's also causing your results to be look better than they really are. Your not really going to know if one design is better than another, until you get your models as correct as possible. You either need to use AutoSeg, or be more careful to get all of the segments adjusted, so that each segment is as close to the same length as possible.

You might also want to look at UHF Bowties - NO Reflector to see a couple of ways to model solid bowties and multi-whisker bowties, that create less errors and better results.

It's great that your experimenting with different antenna designs. Just keep in mind that chasing that last 1/2db gain is difficult. Errors in modeling can easily cause a one decibel or more error in your results, making it difficult to know if your have actually found something new.


·
Registered
Joined
·
119 Posts
Discussion Starter #3
With all the small angles in this antenna, I am using 33 in autoseg.

Gives me a better AGT number.


·
Registered
Joined
·
4,935 Posts
Because the target spectrum is getting narrower, eg 470 to 600 MHz now, your topic statement "we need better / wider bandwidth bowties" is not true. Antenna designs should be getting easier as well as allowing more choice in antenna types. Another area to focus on might be to optimize the 470-600 MHz band, while killing 600-900 MHz as much as possible at the same time, since none of that spectrum is carrying TV signals anymore.


·
Registered
Joined
·
119 Posts
Discussion Starter #5
According to 4nec, this ultra wide band bow-tie looks like it improves swr, and flattens
the impedance curve.

On normal antennas the frequency impedance goes all over the place.

Often from 1000 to 100 ohms.

On this 4nec design, looks like the impedance curve is more flat, closer to 300 ohms.

Finally figured out, how to create a sheet metal version of this.

Think I'll keep working on the 4nec version, till I am satisfied with how flat the gain curve is, then create
the sheet metal version.

Just can't believe how small the flare angles are in the bow ties.

Just using the bow separation sizes, that the optimizer evolve came up with.

These flare angles seems to be too small, but seems to work okay in 4nec.

Go figure.


·
Registered
Joined
·
119 Posts
Discussion Starter #6
Think of ultra wideband bow-ties as a way to have your cake and eat it too.

The 4 whisker uhf bow tie design is is a comprise to get the best average gain, swr, and
impedance for the bow tie over the ufh frequency band.

By using extra whiskers, we don't have to comprise.

By using different bow lengths and bow separations, we can get a flat: gain, swr, and impedance.

We can even design to get decent vhf, on a uhf antenna.

This solves most of our design problems with a 4 bay bow-tie antenna.


·
Registered
Joined
·
119 Posts
Discussion Starter #7
Tired the extra bow lengths, and it does not work.

Also tried the vhf, no luck so far.

At least it makes an excellent uhf antenna.


·
Registered
Joined
·
119 Posts
Discussion Starter #8
Finally figured out, how to make the Ultra wideband sheet metal version.

Ultra wideband bow-ties have very low swr, and the impedance is more close to
300 ohms.

You take the bowlen, and make a circle using the bowlen as the radius.

Take the widest bowsep width, using a ruler, mark the ends, where it meets the circle line.

At each end, draw a line to the middle of the circle.

You will get a simple bow-tie with a curve at the wide end.

You will need multi-threaded version of 4Nec2. NEC2MP.ZIP

You will have to be patient.

It takes at least 15 minutes to a half hour to get a frequency sweep done.

Am enclosing a curved vesion of holl_ands Solid Triangle Bowtie Nec Code.

Uses auto-segmentation of 63.


Code:
CM Lassar's Modified UWB "holl_ands Solid Triangle Bowtie" Nec Code.
CM AWG10 Elements.
CM AUTOSEG(63)
CE
GW    1    5    0    -0.5    0    0    1    0    0.029
GW    400    3    0    1    0    0    1.74280157    0.66666654    0.051
GW    403    3    0    3.22840433    2    0    4.13787244    2.66666654    0.051
GW    405    3    0    5.04734055    3.33333346    0    5.95680866    4    0.051
GW    407    3    0    1    0    0    1.74280157    -0.6666665    0.051
GW    409    3    0    2.48560276    -1.3333335    0    3.22840433    -2    0.051
GW    410    3    0    3.22840433    -2    0    4.13787244    -2.6666665    0.051
GW    412    3    0    5.04734055    -3.3333335    0    5.95680866    -4    0.051
GW    426    5    0    1    0    0    2.36420236    0    0.051
GW    428    5    0    3.72840433    0    0    5.09260669    0    0.051
GW    429    3    0    5.09260669    0    0    6.29014213    0    0.051
GW    431    3    0    7.48767756    0    0    8.68521299    0    0.051
GW    432    3    0    5.09260669    0    0    4.47120591    0.66666654    0.051
GW    434    3    0    3.84980512    1.33333346    0    3.22840433    2    0.051
GW    435    5    0    5.09260669    0    0    5.38067402    1.33333346    0.051
GW    437    5    0    5.66874134    2.66666654    0    5.95680866    4    0.051
GW    438    3    0    5.09260669    0    0    4.47120591    -0.6666665    0.051
GW    440    3    0    3.84980512    -1.3333335    0    3.22840433    -2    0.051
GW    441    5    0    5.09260669    0    0    5.38067402    -1.3333335    0.051
GW    443    5    0    5.66874134    -2.6666665    0    5.95680866    -4    0.051
GW    554    3    0    5.66874134    2.66666654    0    6.63890984    3    0.051
GW    555    3    0    7.48767756    0    0    8.00311181    1    0.051
GW    557    5    0    5.66874134    2.66666654    0    7.32101102    2    0.051
GW    558    5    0    8.00311181    1    0    6.29014213    0    0.051
GW    559    3    0    7.48767756    0    0    8.00311181    -1    0.051
GW    560    3    0    5.66874134    -2.6666665    0    6.63890984    -3    0.051
GW    561    5    0    6.29014213    0    0    5.38067402    -1.3333335    0.051
GW    562    7    0    6.29014213    0    0    5.66874134    -2.6666665    0.051
GW    563    3    0    5.38067402    1.33333346    0    4.47120591    0.66666654    0.051
GW    564    3    0    5.04734055    3.33333346    0    5.66874134    2.66666654    0.051
GW    565    5    0    4.13787244    2.66666654    0    3.84980512    1.33333346    0.051
GW    566    5    0    3.84980512    -1.3333335    0    4.13787244    -2.6666665    0.051
GW    567    3    0    5.66874134    -2.6666665    0    5.04734055    -3.3333335    0.051
GW    568    3    0    4.47120591    -0.6666665    0    5.38067402    -1.3333335    0.051
GW    569    5    0    5.38067402    -1.3333335    0    5.04734055    -3.3333335    0.051
GW    570    5    0    5.38067402    -1.3333335    0    4.13787244    -2.6666665    0.051
GW    571    5    0    4.47120591    -0.6666665    0    4.13787244    -2.6666665    0.051
GW    572    3    0    4.47120591    0.66666654    0    3.72840433    0    0.051
GW    573    3    0    3.72840433    0    0    4.47120591    -0.6666665    0.051
GW    574    5    0    3.84980512    1.33333346    0    3.72840433    0    0.051
GW    575    3    0    1.74280157    0.66666654    0    2.36420236    0    0.051
GW    576    3    0    1.74280157    -0.6666665    0    2.36420236    0    0.051
GW    577    5    0    2.48560276    1.33333346    0    2.36420236    0    0.051
GW    578    5    0    3.84980512    1.33333346    0    2.36420236    0    0.051
GW    579    5    0    2.48560276    1.33333346    0    3.84980512    1.33333346    0.051
GW    580    5    0    2.36420236    0    0    2.48560276    -1.3333335    0.051
GW    581    5    0    3.72840433    0    0    3.84980512    -1.3333335    0.051
GW    582    5    0    3.72840433    0    0    2.48560276    -1.3333335    0.051
GW    583    5    0    5.38067402    1.33333346    0    3.84980512    1.33333346    0.051
GW    584    5    0    4.13787244    2.66666654    0    5.38067402    1.33333346    0.051
GW    585    5    0    5.66874134    2.66666654    0    4.13787244    2.66666654    0.051
GW    586    5    0    5.38067402    1.33333346    0    6.29014213    0    0.051
GW    587    7    0    5.38067402    1.33333346    0    8.00311181    1    0.051
GW    588    9    0    8.68521299    -5    0    5.95680866    -4    0.051
GW    589    7    0    8.68521299    -4    0    6.63890984    -3    0.051
GW    590    5    0    8.00311181    -1    0    6.29014213    0    0.051
GW    591    5    0    7.32101102    -2    0    5.66874134    -2.6666665    0.051
GW    592    7    0    7.32101102    -2    0    6.29014213    0    0.051
GW    593    7    0    8.68521299    1    0    10.7282016    1.97959567    0.051
GW    596    9    0    5.95680906    4    0    8.68521339    6    0.051
GW    599    9    0    5.95680906    -4    0    8.68521339    -6    0.051
GW    600    3    0    8.68521339    0    0    8.68521339    1    0.051
GW    601    3    0    8.68521339    1    0    8.68521339    2    0.051
GW    602    3    0    8.68521339    2    0    8.68521339    3    0.051
GW    603    3    0    8.68521339    3    0    8.68521339    4    0.051
GW    604    3    0    8.68521339    4    0    8.68521339    5    0.051
GW    605    3    0    8.68521339    5    0    8.68521339    6    0.051
GW    606    3    0    8.68521339    0    0    8.68521339    -1    0.051
GW    607    3    0    8.68521339    -1    0    8.68521339    -2    0.051
GW    608    3    0    8.68521339    -2    0    8.68521339    -3    0.051
GW    609    3    0    8.68521339    -3    0    8.68521339    -4    0.051
GW    610    3    0    8.68521339    -4    0    8.68521339    -5    0.051
GW    611    3    0    8.68521339    -5    0    8.68521339    -6    0.051
GW    619    3    0    8.0031122    1    0    7.32101102    2    0.051
GW    620    3    0    7.32101102    2    0    6.63890984    3    0.051
GW    621    3    0    6.63890984    3    0    5.95680906    4    0.051
GW    622    3    0    8.68521339    0    0    8.0031122    -1    0.051
GW    623    3    0    8.0031122    -1    0    7.32101102    -2    0.051
GW    624    3    0    7.32101102    -2    0    6.63890984    -3    0.051
GW    625    3    0    6.63890984    -3    0    5.95680906    -4    0.051
GW    626    1    0    8.68521339    6    0    8.82237205    5.92199449    0.051
GW    627    1    0    8.82237205    5.92199449    0    8.94335    5.77259882    0.051
GW    628    1    0    8.94335    5.77259882    0    9.06117283    5.62070236    0.051
GW    629    1    0    9.06117283    5.62070236    0    9.17578898    5.46637165    0.051
GW    630    1    0    9.17578898    5.46637165    0    9.28714803    5.30967402    0.051
GW    631    1    0    9.28714803    5.30967402    0    9.39520079    5.15067913    0.051
GW    632    1    0    9.39520079    5.15067913    0    9.49990039    4.9894563    0.051
GW    633    1    0    9.49990039    4.9894563    0    9.60120039    4.82607598    0.051
GW    634    1    0    9.60120039    4.82607598    0    9.69905669    4.66060984    0.051
GW    635    1    0    9.69905669    4.66060984    0    9.79342638    4.49313071    0.051
GW    638    1    0    9.97154134    4.15242835    0    10.0552087    3.97935433    0.051
GW    639    1    0    10.0552087    3.97935433    0    10.1352327    3.80456614    0.051
GW    640    1    0    10.1352327    3.80456614    0    10.2115791    3.62814055    0.051
GW    641    1    0    10.2115791    3.62814055    0    10.2842138    3.45015433    0.051
GW    642    1    0    10.2842138    3.45015433    0    10.3531051    3.27068622    0.051
GW    643    1    0    10.3531051    3.27068622    0    10.4182228    3.08981496    0.051
GW    644    1    0    10.4182228    3.08981496    0    10.4795386    2.9076189    0.051
GW    645    1    0    10.4795386    2.9076189    0    10.5370252    2.72417913    0.051
GW    646    1    0    10.5370252    2.72417913    0    10.5906571    2.53957559    0.051
GW    647    1    0    10.5906571    2.53957559    0    10.6404122    2.35389016    0.051
GW    648    1    0    10.6404122    2.35389016    0    10.6862673    2.16720276    0.051
GW    649    1    0    10.6862673    2.16720276    0    10.7282024    1.97959606    0.051
GW    650    1    0    10.7282024    1.97959606    0    10.766198    1.79115236    0.051
GW    651    1    0    10.766198    1.79115236    0    10.8002413    1.60195354    0.051
GW    652    1    0    10.8002413    1.60195354    0    10.830313    1.41208425    0.051
GW    653    1    0    10.830313    1.41208425    0    10.8564024    1.22162598    0.051
GW    654    1    0    10.8564024    1.22162598    0    10.878498    1.03066378    0.051
GW    655    1    0    10.878498    1.03066378    0    10.896589    0.83928031    0.051
GW    656    1    0    10.896589    0.83928031    0    10.9106681    0.64756024    0.051
GW    657    1    0    10.9106681    0.64756024    0    10.9207291    0.4555874    0.051
GW    658    1    0    10.9207291    0.4555874    0    10.9267673    0.26344606    0.051
GW    659    1    0    10.9267673    0.26344606    0    10.9287803    0.07122008    0.051
GW    660    1    0    10.9287803    0.07122008    0    10.9267673    -0.1210059    0.051
GW    661    1    0    10.9267673    -0.1210059    0    10.9207291    -0.3131476    0.051
GW    662    1    0    10.9207291    -0.3131476    0    10.9106681    -0.5051205    0.051
GW    663    1    0    10.9106681    -0.5051205    0    10.896589    -0.6968406    0.051
GW    664    1    0    10.896589    -0.6968406    0    10.878498    -0.888224    0.051
GW    665    1    0    10.878498    -0.888224    0    10.8564024    -1.0791862    0.051
GW    666    1    0    10.8564024    -1.0791862    0    10.830313    -1.2696441    0.051
GW    667    1    0    10.830313    -1.2696441    0    10.8002413    -1.4595138    0.051
GW    668    1    0    10.8002413    -1.4595138    0    10.766198    -1.6487118    0.051
GW    669    1    0    10.766198    -1.6487118    0    10.7282024    -1.8371559    0.051
GW    670    1    0    10.7282024    -1.8371559    0    10.6862673    -2.0247626    0.051
GW    671    1    0    10.6862673    -2.0247626    0    10.6404122    -2.2114496    0.051
GW    672    1    0    10.6404122    -2.2114496    0    10.5906571    -2.3971358    0.051
GW    673    1    0    10.5906571    -2.3971358    0    10.5370252    -2.5817394    0.051
GW    674    1    0    10.5370252    -2.5817394    0    10.4795386    -2.7651791    0.051
GW    675    1    0    10.4795386    -2.7651791    0    10.4182228    -2.9473748    0.051
GW    676    1    0    10.4182228    -2.9473748    0    10.3531051    -3.1282461    0.051
GW    677    1    0    10.3531051    -3.1282461    0    10.2842138    -3.3077142    0.051
GW    678    1    0    10.2842138    -3.3077142    0    10.2115791    -3.4857004    0.051
GW    679    1    0    10.2115791    -3.4857004    0    10.1352327    -3.662126    0.051
GW    680    1    0    10.1352327    -3.662126    0    10.0552087    -3.8369146    0.051
GW    681    1    0    10.0552087    -3.8369146    0    9.97154134    -4.0099886    0.051
GW    682    1    0    9.97154134    -4.0099886    0    9.88426772    -4.1812724    0.051
GW    683    1    0    9.88426772    -4.1812724    0    9.79342638    -4.3506909    0.051
GW    684    1    0    9.79342638    -4.3506909    0    9.69905669    -4.5181701    0.051
GW    685    1    0    9.69905669    -4.5181701    0    9.60120039    -4.6836358    0.051
GW    686    1    0    9.60120039    -4.6836358    0    9.49990039    -4.8470161    0.051
GW    688    1    0    9.39520079    -5.0082394    0    9.28714803    -5.1672343    0.051
GW    689    1    0    9.28714803    -5.1672343    0    9.17578898    -5.3239315    0.051
GW    690    1    0    9.17578898    -5.3239315    0    9.06117283    -5.4782622    0.051
GW    691    1    0    9.06117283    -5.4782622    0    8.94335    -5.6301587    0.051
GW    692    1    0    8.94335    -5.6301587    0    8.8    -5.8    0.051
GW    693    1    0    8.8    -5.8    0    8.68521339    -6    0.051
GW    694    3    0    8.68521339    5    0    9.39520079    5.15067913    0.051
GW    695    5    0    8.68521339    4    0    10.0552087    3.97935433    0.051
GW    696    5    0    8.68521339    3    0    10.4182228    3.08981496    0.051
GW    697    5    0    8.68521339    2    0    10.7282024    1.97959606    0.051
GW    698    7    0    8.68521339    1    0    10.878498    1.03066378    0.051
GW    699    7    0    8.68521339    -1    0    10.878498    -0.888224    0.051
GW    700    5    0    8.68521339    -2    0    10.6862673    -2.0247626    0.051
GW    701    5    0    8.68521339    -3    0    10.4182228    -2.9473748    0.051
GW    702    3    0    8.68521339    -4    0    9.97154134    -4.0099886    0.051
GW    703    3    0    8.68521339    -5    0    9.39520079    -5.0082394    0.051
GW    704    5    0    8.68521339    5    0    10.0552087    3.97935433    0.051
GW    705    5    0    10.0552087    3.97935433    0    8.68521339    3    0.051
GW    706    7    0    8.68521339    3    0    10.7282024    1.97959606    0.051
GW    708    5    0    10.878498    1.03066378    0    9.80699685    0.03560984    0.051
GW    709    5    0    9.80699685    0.03560984    0    8.68521339    -1    0.051
GW    710    7    0    10.878498    -0.888224    0    8.68521339    -2    0.051
GW    711    7    0    10.6862673    -2.0247626    0    8.68521339    -3    0.051
GW    712    5    0    8.68521339    -3    0    9.97154134    -4.0099886    0.051
GW    713    3    0    8.68521339    -4    0    9.39520079    -5.0082394    0.051
GW    714    3    0    8.68521339    0    0    9.80699685    0.03560984    0.051
GW    715    3    0    9.80699685    0.03560984    0    10.9287803    0.07122008    0.051
GW    716    7    0    8.68521339    4    0    6.63890984    3    0.051
GW    717    7    0    8.68521339    4    0    7.32101102    2    0.051
GW    718    5    0    7.32101102    2    0    8.68521339    2    0.051
GW    719    9    0    8.68521339    5    0    6.63890984    3    0.051
GW    720    9    0    5.95680906    4    0    8.68521339    5    0.051
GW    721    9    0    6.63890984    -3    0    8.68521339    -5    0.051
GW    722    5    0    8.68521339    -3    0    6.63890984    -3    0.051
GW    723    5    0    7.32101102    -2    0    8.68521339    -3    0.051
GW    724    5    0    8.68521339    -2    0    7.32101102    -2    0.051
GW    725    3    0    8.0031122    -1    0    8.68521339    -2    0.051
GW    726    3    0    8.0031122    -1    0    8.68521339    -1    0.051
GW    728    5    0    8.68521339    3    0    7.32101102    2    0.051
GW    729    3    0    8.68521339    2    0    8.0031122    1    0.051
GW    730    3    0    8.0031122    1    0    8.68521339    1    0.051
GW    1001    3    0    5.04734055    3.33333346    0    4.13787244    2.66666654    0.051
GW    1002    3    0    1.74280157    -0.6666665    0    2.48560276    -1.3333335    0.051
GW    1003    3    0    4.13787244    -2.6666665    0    5.04734055    -3.3333335    0.051
GW    1004    1    0    1.74280157    0.66666654    0    2.11420217    1    0.051
GW    1005    3    0    4.47120591    -0.6666665    0    3.84980512    -1.3333335    0.051
GW    1006    3    0    6.29014213    0    0    7.48767756    0    0.051
GW    1007    5    0    5.38067402    -1.3333335    0    5.66874134    -2.6666665    0.051
GW    1008    5    0    5.66874134    2.66666654    0    5.38067402    1.33333346    0.051
GW    1009    5    0    2.36420236    0    0    3.72840433    0    0.051
GW    1010    3    0    3.84980512    1.33333346    0    4.47120591    0.66666654    0.051
GW    618    3    0    8.68521339    0    0    8.0031122    1    0.051
GW    556    5    0    5.38067402    1.33333346    0    7.32101102    2    0.051
GW    1011    3    0    -0.5    0    0    -1.2428016    -0.6666665    0.051
GW    1012    3    0    -2.7284043    -2    0    -3.6378724    -2.6666665    0.051
GW    1013    3    0    -4.5473406    -3.3333335    0    -5.4568087    -4    0.051
GW    1014    3    0    -0.5    0    0    -1.2428016    0.66666654    0.051
GW    1015    3    0    -1.9856028    1.33333346    0    -2.7284043    2    0.051
GW    1016    3    0    -2.7284043    2    0    -3.6378724    2.66666654    0.051
GW    1017    3    0    -4.5473406    3.33333346    0    -5.4568087    4    0.051
GW    1018    5    0    -0.5    0    0    -1.8642024    0    0.051
GW    1019    5    0    -3.2284043    0    0    -4.5926067    0    0.051
GW    1020    3    0    -4.5926067    0    0    -5.7901421    0    0.051
GW    1021    3    0    -6.9876776    0    0    -8.185213    0    0.051
GW    1022    3    0    -4.5926067    0    0    -3.9712059    -0.6666665    0.051
GW    1023    3    0    -3.3498051    -1.3333335    0    -2.7284043    -2    0.051
GW    1024    5    0    -4.5926067    0    0    -4.880674    -1.3333335    0.051
GW    1025    5    0    -5.1687413    -2.6666665    0    -5.4568087    -4    0.051
GW    1026    3    0    -4.5926067    0    0    -3.9712059    0.66666654    0.051
GW    1027    3    0    -3.3498051    1.33333346    0    -2.7284043    2    0.051
GW    1028    5    0    -4.5926067    0    0    -4.880674    1.33333346    0.051
GW    1029    5    0    -5.1687413    2.66666654    0    -5.4568087    4    0.051
GW    1030    3    0    -5.1687413    -2.6666665    0    -6.1389098    -3    0.051
GW    1031    3    0    -6.9876776    0    0    -7.5031118    -1    0.051
GW    1032    5    0    -5.1687413    -2.6666665    0    -6.821011    -2    0.051
GW    1033    5    0    -7.5031118    -1    0    -5.7901421    0    0.051
GW    1034    3    0    -6.9876776    0    0    -7.5031118    1    0.051
GW    1035    3    0    -5.1687413    2.66666654    0    -6.1389098    3    0.051
GW    1036    5    0    -5.7901421    0    0    -4.880674    1.33333346    0.051
GW    1037    7    0    -5.7901421    0    0    -5.1687413    2.66666654    0.051
GW    1038    3    0    -4.880674    -1.3333335    0    -3.9712059    -0.6666665    0.051
GW    1039    3    0    -4.5473406    -3.3333335    0    -5.1687413    -2.6666665    0.051
GW    1040    5    0    -3.6378724    -2.6666665    0    -3.3498051    -1.3333335    0.051
GW    1041    5    0    -3.3498051    1.33333346    0    -3.6378724    2.66666654    0.051
GW    1042    3    0    -5.1687413    2.66666654    0    -4.5473406    3.33333346    0.051
GW    1043    3    0    -3.9712059    0.66666654    0    -4.880674    1.33333346    0.051
GW    1044    5    0    -4.880674    1.33333346    0    -4.5473406    3.33333346    0.051
GW    1045    5    0    -4.880674    1.33333346    0    -3.6378724    2.66666654    0.051
GW    1046    5    0    -3.9712059    0.66666654    0    -3.6378724    2.66666654    0.051
GW    1047    3    0    -3.9712059    -0.6666665    0    -3.2284043    0    0.051
GW    1048    3    0    -3.2284043    0    0    -3.9712059    0.66666654    0.051
GW    1049    5    0    -3.3498051    -1.3333335    0    -3.2284043    0    0.051
GW    1050    3    0    -1.2428016    -0.6666665    0    -1.8642024    0    0.051
GW    1053    5    0    -3.3498051    -1.3333335    0    -1.8642024    0    0.051
GW    1055    5    0    -1.8642024    0    0    -1.9856028    1.33333346    0.051
GW    1056    5    0    -3.2284043    0    0    -3.3498051    1.33333346    0.051
GW    1057    5    0    -3.2284043    0    0    -1.9856028    1.33333346    0.051
GW    1058    5    0    -4.880674    -1.3333335    0    -3.3498051    -1.3333335    0.051
GW    1059    5    0    -3.6378724    -2.6666665    0    -4.880674    -1.3333335    0.051
GW    1060    5    0    -5.1687413    -2.6666665    0    -3.6378724    -2.6666665    0.051
GW    1061    5    0    -4.880674    -1.3333335    0    -5.7901421    0    0.051
GW    1062    7    0    -4.880674    -1.3333335    0    -7.5031118    -1    0.051
GW    1063    9    0    -8.185213    5    0    -5.4568087    4    0.051
GW    1064    7    0    -8.185213    4    0    -6.1389098    3    0.051
GW    1065    5    0    -7.5031118    1    0    -5.7901421    0    0.051
GW    1066    5    0    -6.821011    2    0    -5.1687413    2.66666654    0.051
GW    1067    7    0    -6.821011    2    0    -5.7901421    0    0.051
GW    1068    7    0    -8.185213    -1    0    -10.228202    -1.9795957    0.051
GW    1070    9    0    -5.4568091    -4    0    -8.1852134    -6    0.051
GW    1071    9    0    -5.4568091    4    0    -8.1852134    6    0.051
GW    1074    3    0    -8.1852134    -2    0    -8.1852134    -3    0.051
GW    1075    3    0    -8.1852134    -3    0    -8.1852134    -4    0.051
GW    1076    3    0    -8.1852134    -4    0    -8.1852134    -5    0.051
GW    1077    3    0    -8.1852134    -5    0    -8.1852134    -6    0.051
GW    1078    3    0    -8.1852134    0    0    -8.1852134    1    0.051
GW    1079    3    0    -8.1852134    1    0    -8.1852134    2    0.051
GW    1080    3    0    -8.1852134    2    0    -8.1852134    3    0.051
GW    1081    3    0    -8.1852134    3    0    -8.1852134    4    0.051
GW    1082    3    0    -8.1852134    4    0    -8.1852134    5    0.051
GW    1083    3    0    -8.1852134    5    0    -8.1852134    6    0.051
GW    1084    3    0    -7.5031122    -1    0    -6.821011    -2    0.051
GW    1085    3    0    -6.821011    -2    0    -6.1389098    -3    0.051
GW    1086    3    0    -6.1389098    -3    0    -5.4568091    -4    0.051
GW    1087    3    0    -8.1852134    0    0    -7.5031122    1    0.051
GW    1088    3    0    -7.5031122    1    0    -6.821011    2    0.051
GW    1089    3    0    -6.821011    2    0    -6.1389098    3    0.051
GW    1090    3    0    -6.1389098    3    0    -5.4568091    4    0.051
GW    1091    1    0    -8.1852134    -6    0    -8.322372    -5.9219945    0.051
GW    1092    1    0    -8.322372    -5.9219945    0    -8.44335    -5.7725988    0.051
GW    1093    1    0    -8.44335    -5.7725988    0    -8.5611728    -5.6207024    0.051
GW    1094    1    0    -8.5611728    -5.6207024    0    -8.675789    -5.4663717    0.051
GW    1095    1    0    -8.675789    -5.4663717    0    -8.787148    -5.309674    0.051
GW    1096    1    0    -8.787148    -5.309674    0    -8.8952008    -5.1506791    0.051
GW    1097    1    0    -8.8952008    -5.1506791    0    -8.9999004    -4.9894563    0.051
GW    1098    1    0    -8.9999004    -4.9894563    0    -9.1012004    -4.826076    0.051
GW    1099    1    0    -9.1012004    -4.826076    0    -9.1990567    -4.6606098    0.051
GW    1100    1    0    -9.1990567    -4.6606098    0    -9.2934264    -4.4931307    0.051
GW    1101    1    0    -9.2934264    -4.4931307    0    -9.3842677    -4.3237122    0.051
GW    1102    1    0    -9.3842677    -4.3237122    0    -9.4715413    -4.1524283    0.051
GW    1103    1    0    -9.4715413    -4.1524283    0    -9.5552087    -3.9793543    0.051
GW    1104    1    0    -9.5552087    -3.9793543    0    -9.6352327    -3.8045661    0.051
GW    1105    1    0    -9.6352327    -3.8045661    0    -9.7115791    -3.6281406    0.051
GW    1106    1    0    -9.7115791    -3.6281406    0    -9.7842138    -3.4501543    0.051
GW    1107    1    0    -9.7842138    -3.4501543    0    -9.8531051    -3.2706862    0.051
GW    1108    1    0    -9.8531051    -3.2706862    0    -9.9182228    -3.089815    0.051
GW    1109    1    0    -9.9182228    -3.089815    0    -9.9795386    -2.9076189    0.051
GW    1110    1    0    -9.9795386    -2.9076189    0    -10.037025    -2.7241791    0.051
GW    1111    1    0    -10.037025    -2.7241791    0    -10.090657    -2.5395756    0.051
GW    1112    1    0    -10.090657    -2.5395756    0    -10.140412    -2.3538902    0.051
GW    1113    1    0    -10.140412    -2.3538902    0    -10.186267    -2.1672028    0.051
GW    1114    1    0    -10.186267    -2.1672028    0    -10.228202    -1.9795961    0.051
GW    1115    1    0    -10.228202    -1.9795961    0    -10.266198    -1.7911524    0.051
GW    1116    1    0    -10.266198    -1.7911524    0    -10.300241    -1.6019535    0.051
GW    1117    1    0    -10.300241    -1.6019535    0    -10.330313    -1.4120843    0.051
GW    1118    1    0    -10.330313    -1.4120843    0    -10.356402    -1.221626    0.051
GW    1119    1    0    -10.356402    -1.221626    0    -10.378498    -1.0306638    0.051
GW    1120    1    0    -10.378498    -1.0306638    0    -10.396589    -0.8392803    0.051
GW    1121    1    0    -10.396589    -0.8392803    0    -10.410668    -0.6475602    0.051
GW    1122    1    0    -10.410668    -0.6475602    0    -10.420729    -0.4555874    0.051
GW    1123    1    0    -10.420729    -0.4555874    0    -10.426767    -0.2634461    0.051
GW    1124    1    0    -10.426767    -0.2634461    0    -10.42878    -0.0712201    0.051
GW    1125    1    0    -10.42878    -0.0712201    0    -10.426767    0.12100591    0.051
GW    1126    1    0    -10.426767    0.12100591    0    -10.420729    0.31314764    0.051
GW    1127    1    0    -10.420729    0.31314764    0    -10.410668    0.50512047    0.051
GW    1128    1    0    -10.410668    0.50512047    0    -10.396589    0.69684055    0.051
GW    1129    1    0    -10.396589    0.69684055    0    -10.378498    0.88822402    0.051
GW    1130    1    0    -10.378498    0.88822402    0    -10.356402    1.07918622    0.051
GW    1131    1    0    -10.356402    1.07918622    0    -10.330313    1.26964409    0.051
GW    1132    1    0    -10.330313    1.26964409    0    -10.300241    1.45951378    0.051
GW    1133    1    0    -10.300241    1.45951378    0    -10.266198    1.64871181    0.051
GW    1134    1    0    -10.266198    1.64871181    0    -10.228202    1.83715591    0.051
GW    1135    1    0    -10.228202    1.83715591    0    -10.186267    2.0247626    0.051
GW    1136    1    0    -10.186267    2.0247626    0    -10.140412    2.21144961    0.051
GW    1137    1    0    -10.140412    2.21144961    0    -10.090657    2.39713583    0.051
GW    1138    1    0    -10.090657    2.39713583    0    -10.037025    2.58173937    0.051
GW    1139    1    0    -10.037025    2.58173937    0    -9.9795386    2.76517913    0.051
GW    1140    1    0    -9.9795386    2.76517913    0    -9.9182228    2.9473748    0.051
GW    1141    1    0    -9.9182228    2.9473748    0    -9.8531051    3.12824606    0.051
GW    1142    1    0    -9.8531051    3.12824606    0    -9.7842138    3.30771417    0.051
GW    1143    1    0    -9.7842138    3.30771417    0    -9.7115791    3.48570039    0.051
GW    1144    1    0    -9.7115791    3.48570039    0    -9.6352327    3.66212598    0.051
GW    1145    1    0    -9.6352327    3.66212598    0    -9.5552087    3.83691457    0.051
GW    1146    1    0    -9.5552087    3.83691457    0    -9.4715413    4.00998858    0.051
GW    1147    1    0    -9.4715413    4.00998858    0    -9.3842677    4.18127244    0.051
GW    1148    1    0    -9.3842677    4.18127244    0    -9.2934264    4.35069094    0.051
GW    1149    1    0    -9.2934264    4.35069094    0    -9.1990567    4.51817008    0.051
GW    1150    1    0    -9.1990567    4.51817008    0    -9.1012004    4.68363583    0.051
GW    1151    1    0    -9.1012004    4.68363583    0    -8.9999004    4.84701614    0.051
GW    1152    1    0    -8.9999004    4.84701614    0    -8.8952008    5.00823937    0.051
GW    1153    1    0    -8.8952008    5.00823937    0    -8.787148    5.16723425    0.051
GW    1154    1    0    -8.787148    5.16723425    0    -8.675789    5.3239315    0.051
GW    1155    1    0    -8.675789    5.3239315    0    -8.5611728    5.4782622    0.051
GW    1156    1    0    -8.5611728    5.4782622    0    -8.44335    5.63015866    0.051
GW    1157    1    0    -8.44335    5.63015866    0    -8.3    5.8    0.051
GW    1158    1    0    -8.3    5.8    0    -8.1852134    6    0.051
GW    1159    3    0    -8.1852134    -5    0    -8.8952008    -5.1506791    0.051
GW    1160    5    0    -8.1852134    -4    0    -9.5552087    -3.9793543    0.051
GW    1161    5    0    -8.1852134    -3    0    -9.9182228    -3.089815    0.051
GW    1162    5    0    -8.1852134    -2    0    -10.228202    -1.9795961    0.051
GW    1163    7    0    -8.1852134    -1    0    -10.378498    -1.0306638    0.051
GW    1164    7    0    -8.1852134    1    0    -10.378498    0.88822402    0.051
GW    1165    5    0    -8.1852134    2    0    -10.186267    2.0247626    0.051
GW    1166    5    0    -8.1852134    3    0    -9.9182228    2.9473748    0.051
GW    1167    3    0    -8.1852134    4    0    -9.4715413    4.00998858    0.051
GW    1168    3    0    -8.1852134    5    0    -8.8952008    5.00823937    0.051
GW    1169    5    0    -8.1852134    -5    0    -9.5552087    -3.9793543    0.051
GW    1170    5    0    -9.5552087    -3.9793543    0    -8.1852134    -3    0.051
GW    1171    7    0    -8.1852134    -3    0    -10.228202    -1.9795961    0.051
GW    1172    5    0    -10.378498    -1.0306638    0    -9.3069969    -0.0356098    0.051
GW    1173    5    0    -9.3069969    -0.0356098    0    -8.1852134    1    0.051
GW    1174    7    0    -10.378498    0.88822402    0    -8.1852134    2    0.051
GW    1175    7    0    -10.186267    2.0247626    0    -8.1852134    3    0.051
GW    1176    5    0    -8.1852134    3    0    -9.4715413    4.00998858    0.051
GW    1177    3    0    -8.1852134    4    0    -8.8952008    5.00823937    0.051
GW    1178    3    0    -8.1852134    0    0    -9.3069969    -0.0356098    0.051
GW    1179    3    0    -9.3069969    -0.0356098    0    -10.42878    -0.0712201    0.051
GW    1180    7    0    -8.1852134    -4    0    -6.1389098    -3    0.051
GW    1181    7    0    -8.1852134    -4    0    -6.821011    -2    0.051
GW    1182    5    0    -6.821011    -2    0    -8.1852134    -2    0.051
GW    1183    9    0    -8.1852134    -5    0    -6.1389098    -3    0.051
GW    1184    9    0    -5.4568091    -4    0    -8.1852134    -5    0.051
GW    1185    9    0    -6.1389098    3    0    -8.1852134    5    0.051
GW    1186    5    0    -8.1852134    3    0    -6.1389098    3    0.051
GW    1187    5    0    -6.821011    2    0    -8.1852134    3    0.051
GW    1188    5    0    -8.1852134    2    0    -6.821011    2    0.051
GW    1189    3    0    -7.5031122    1    0    -8.1852134    2    0.051
GW    1190    3    0    -7.5031122    1    0    -8.1852134    1    0.051
GW    1191    5    0    -8.1852134    -3    0    -6.821011    -2    0.051
GW    1192    3    0    -8.1852134    -2    0    -7.5031122    -1    0.051
GW    1193    3    0    -7.5031122    -1    0    -8.1852134    -1    0.051
GW    1194    3    0    -4.5473406    -3.3333335    0    -3.6378724    -2.6666665    0.051
GW    1195    3    0    -1.2428016    0.66666654    0    -1.9856028    1.33333346    0.051
GW    1196    3    0    -3.6378724    2.66666654    0    -4.5473406    3.33333346    0.051
GW    1197    1    0    -1.2428016    -0.6666665    0    -1.6142024    -1    0.051
GW    1198    3    0    -3.9712059    0.66666654    0    -3.3498051    1.33333346    0.051
GW    1199    3    0    -5.7901421    0    0    -6.9876776    0    0.051
GW    1200    5    0    -4.880674    1.33333346    0    -5.1687413    2.66666654    0.051
GW    1201    5    0    -5.1687413    -2.6666665    0    -4.880674    -1.3333335    0.051
GW    1202    5    0    -1.8642024    0    0    -3.2284043    0    0.051
GW    1203    3    0    -3.3498051    -1.3333335    0    -3.9712059    -0.6666665    0.051
GW    1204    3    0    -8.1852134    0    0    -7.5031122    -1    0.051
GW    1205    5    0    -4.880674    -1.3333335    0    -6.821011    -2    0.051
GW    687    1    0    9.49990039    -4.8470161    0    9.39520079    -5.0082394    0.051
GW    1206    1    0    3.22840433    2    0    2.48560276    1.33333346    0.051
GW    1207    1    0    2.48560276    1.33333346    0    2.11420217    1    0.051
GW    1054    5    0    -1.9856028    -1.3333335    0    -3.3498051    -1.3333335    0.051
GW    1208    1    0    -2.7284043    -2    0    -1.9856028    -1.3333335    0.051
GW    1209    1    0    -1.6142024    -1    0    -1.9856028    -1.3333335    0.051
GW    1051    3    0    -1.2428016    0.66666654    0    -1.8642024    0    0.051
GW    1210    1    0    -1.9856028    -1.3333335    0    -1.8642024    0    0.051
GW    1072    3    0    -8.1852134    0    0    -8.1852134    -1    0.051
GW    1073    3    0    -8.1852134    -1    0    -8.1852134    -2    0.051
GW    636    1    0    9.79342638    4.49313071    0    9.88426772    4.3237122    0.051
GW    1211    1    0    9.88426772    4.3237122    0    9.97154134    4.15242835    0.051
GS    0    0    0.0254        ' All in in.
GE    0
EK
LD    5    0    0    0    3.e7    0
EX    0    1    3    0    1    0
GN    -1
FR    0    1    0    0    470    0
RP 0 1 73 1510 90 0 1 5 0 0


·
Registered
Joined
·
133 Posts
You will need to resolve the long list of warnings, before your results are accurate. There are situations where you have to ignore warning, but always know that your results may be inaccurate. The good news is that your basic design actually has more gain, than your model shows. My testing indicates that your SWR and impedance numbers are being skewed by the errors in the model. The SWR and impedance match are better for a solid bowtie, than for 2 whiskers, but there isn't as much difference as your showing. Here's a model, of your antenna, that has few, if any warnings. You should be able to run it with AutoSeg from 15 segments to around 45 segments. You can also run it with manual segmenting. You should get very few warnings, and basically the same results, no matter how you segment it. You will have to adjust the source radius, depending on your segment method. You will also notice, with this model, that the source radius for 470mhz, 540mhz, and 608mhz is almost the same. This indicates that the model is giving pretty accurate results, across the entire UHF Repack band.

Code:
CM Simple 2 bay dipole with solid bowties with radiused end
CM Simple SOURCE Wire.
CE
SY Rsrc=0.026    'SOURCE wire Radius. Adjust for AGT=1.0: UHF(540)=0.027          AutoSeg(33)    UHF(540)=0.026
SY Rbow=0.0125    'Radius (in inches) of BOWTIE elements
SY RACT=.051
SY Rfeed=0.0625    'FEEDLINE wire Radius
SY Rstub=(Rfeed+Rbow)/2    'Feed Stub to transition to bowtie
SY FedSep=1.25    'Separation (in inches) between two FEEDLINE wires
SY BowSep=12.0    'Bow Tine Separation     6.25
SY bzs=BowSep/20    'Bow Tine Separation segments
SY BowLen2=11.0    'Bow Length     11.0     10.25 to match lassars design
SY BowLen=(((BowLen2*Bowlen2))-((10*bzs)*(10*bzs)))^0.5    'BowLen Y of tips
SY bys=BowLen/10    'Bow Length Segment
SY feed=FedSep/2
SY Cond=1.67e7    'Conductivity (Copper=3.0e7, Alum=2.0e7, StainlessSteel=1.67e7)
SY ib=0    'No offset, single bowtie
SY y11=feed+(0.5*bys)
SY y12=feed+(2*bys)
SY y13=feed+(3*bys)
SY y14=feed+(4*bys)
SY y15=feed+(5*bys)
SY y16=feed+(6*bys)
SY y17=feed+(7*bys)
SY y18=feed+(8*bys)
SY y19=feed+(9*bys)
SY yend=feed+BowLen
SY y22=feed+BowLen2
SY bowtip=(BowLen2-Bowlen)/10
SY bowtip2=bowtip*2
SY bowtip4=bowtip*4
SY bowtip7=bowtip*7
SY bowtip9=bowtip*9.5
SY y20=Yend
SY y21=Yend
SY z11=1*bzs
SY z12=2*bzs
SY z13=3*bzs
SY z14=4*bzs
SY z15=5*bzs
SY z16=6*bzs
SY z17=7*bzs
SY z18=8*bzs
SY z19=9*bzs
SY z20=10*bzs
GW    1    1    0    feed    ib    0    y11    ib    Rstub
GW    2    5    0    y11    ib    0    y12    ib+z12    Rbow
GW    3    5    0    y11    ib    0    y12    ib-z12    Rbow
GW    4    7    0    y12    ib+z12    0    y12    ib-z12    Rbow
GW    5    5    0    y12    ib+z12    0    y13    ib    Rbow
GW    6    5    0    y12    ib-z12    0    y13    ib    Rbow
GW    7    3    0    y12    ib+z12    0    y13    ib+z13    Rbow
GW    8    3    0    y12    ib-z12    0    y13    ib-z13    Rbow
GW    9    5    0    y13    ib    0    y13    ib+z13    Rbow
GW    10    5    0    y13    ib    0    y13    ib-z13    Rbow
GW    11    5    0    y13    ib+z13    0    y14    ib    Rbow
GW    12    5    0    y13    ib-z13    0    y14    ib    Rbow
GW    13    3    0    y13    ib+z13    0    y14    ib+z14    Rbow
GW    14    3    0    y13    ib-z13    0    y14    ib-z14    Rbow
GW    15    7    0    y14    ib    0    y14    ib+z14    Rbow
GW    16    7    0    y14    ib    0    y14    ib-z14    Rbow
GW    17    7    0    y14    ib+z14    0    y15    ib    Rbow
GW    18    7    0    y14    ib-z14    0    y15    ib    Rbow
GW    19    3    0    y14    ib+z14    0    y15    ib+z15    Rbow
GW    20    3    0    y14    ib-z14    0    y15    ib-z15    Rbow
GW    21    9    0    y15    ib    0    y15    ib+z15    Rbow
GW    22    9    0    y15    ib    0    y15    ib-z15    Rbow
GW    23    3    0    y14    ib    0    y15    ib    Rbow
GW    24    5    0    y15    ib    0    y16    ib+z13    Rbow
GW    25    5    0    y15    ib    0    y16    ib-z13    Rbow
GW    26    5    0    y15    ib+z15    0    y16    ib+z13    Rbow
GW    27    5    0    y15    ib-z15    0    y16    ib-z13    Rbow
GW    28    3    0    y15    ib+z15    0    y16    ib+z16    Rbow
GW    29    3    0    y15    ib-z15    0    y16    ib-z16    Rbow
GW    30    3    0    y15    ib    0    y16    ib    Rbow
GW    31    5    0    y16    ib+z13    0    y16    ib+z16    Rbow
GW    32    5    0    y16    ib-z13    0    y16    ib-z16    Rbow
GW    33    5    0    y16    ib    0    y16    ib+z13    Rbow
GW    34    5    0    y16    ib    0    y16    ib-z13    Rbow
GW    35    5    0    y16    ib    0    y17    ib+z13    Rbow
GW    36    5    0    y16    ib    0    y17    ib-z13    Rbow
GW    37    5    0    y16    ib+z16    0    y17    ib+z13    Rbow
GW    38    5    0    y16    ib-z16    0    y17    ib-z13    Rbow
GW    39    3    0    y16    ib+z16    0    y17    ib+z17    Rbow
GW    40    3    0    y16    ib-z16    0    y17    ib-z17    Rbow
GW    41    3    0    y16    ib    0    y17    ib    Rbow
GW    42    3    0    y16    ib+z13    0    y17    ib+z13    Rbow
GW    43    3    0    y16    ib-z13    0    y17    ib-z13    Rbow
GW    44    7    0    y17    ib+z13    0    y17    ib+z17    Rbow
GW    45    7    0    y17    ib-z13    0    y17    ib-z17    Rbow
GW    46    5    0    y17    ib    0    y17    ib+z13    Rbow
GW    47    5    0    y17    ib    0    y17    ib-z13    Rbow
GW    48    5    0    y17    ib+z13    0    y18    ib    Rbow
GW    49    5    0    y17    ib-z13    0    y18    ib    Rbow
GW    50    5    0    y17    ib+z17    0    y18    ib+z14    Rbow
GW    51    5    0    y17    ib-z17    0    y18    ib-z14    Rbow
GW    52    3    0    y17    ib+z17    0    y18    ib+z18    Rbow
GW    53    3    0    y17    ib-z17    0    y18    ib-z18    Rbow
GW    54    3    0    y17    ib    0    y18    ib    Rbow
GW    55    3    0    y17    ib+z13    0    y18    ib+z14    Rbow
GW    56    3    0    y17    ib-z13    0    y18    ib-z14    Rbow
GW    57    7    0    y18    ib+z14    0    y18    ib+z18    Rbow
GW    58    7    0    y18    ib-z14    0    y18    ib-z18    Rbow
GW    59    7    0    y18    ib    0    y18    ib+z14    Rbow
GW    60    7    0    y18    ib    0    y18    ib-z14    Rbow
GW    61    7    0    y18    ib    0    y19    ib+z14    Rbow
GW    62    7    0    y18    ib    0    y19    ib-z14    Rbow
GW    63    7    0    y18    ib+z18    0    y19    ib+z14    Rbow
GW    64    7    0    y18    ib-z18    0    y19    ib-z14    Rbow
GW    65    3    0    y18    ib+z18    0    y19    ib+z19    Rbow
GW    66    3    0    y18    ib-z18    0    y19    ib-z19    Rbow
GW    67    3    0    y18    ib    0    y19    ib    Rbow
GW    68    3    0    y18    ib+z14    0    y19    ib+z14    Rbow
GW    69    3    0    y18    ib-z14    0    y19    ib-z14    Rbow
GW    70    3    0    y19    ib+z14    0    y19    ib+z16    Rbow
GW    71    5    0    y19    ib+z16    0    y19    ib+z19    Rbow
GW    72    3    0    y19    ib+z16    0    yend+bowtip2    ib+z16    Rbow
GW    73    3    0    y19    ib-z14    0    y19    ib-z16    Rbow
GW    74    5    0    y19    ib-z16    0    y19    ib-z19    Rbow
GW    75    7    0    y19    ib    0    y19    ib+z14    Rbow
GW    76    7    0    y19    ib    0    y19    ib-z14    Rbow
GW    77    7    0    y19    ib+z14    0    yend+bowtip2    ib    Rbow
GW    78    7    0    y19    ib-z14    0    yend+bowtip2    ib    Rbow
GW    79    5    0    y19    ib+z14    0    yend+bowtip2    ib+z16    Rbow
GW    80    5    0    y19    ib-z14    0    yend+bowtip2    ib-z16    Rbow
GW    81    3    0    y19    ib-z16    0    yend+bowtip2    ib-z16    Rbow
GW    82    7    0    y19    ib+z19    0    yend+bowtip2    ib+z16    Rbow
GW    83    7    0    y19    ib-z19    0    yend+bowtip2    ib-z16    Rbow
GW    84    3    0    y19    ib+z19    0    yend    ib+z20    Rbow
GW    85    3    0    y19    ib-z19    0    yend    ib-z20    Rbow
GW    86    3    0    y19    ib    0    yend+bowtip2    ib    Rbow
GW    87    5    0    yend+bowtip2    ib    0    yend+bowtip2    ib+z13    Rbow
GW    88    3    0    y19    ib+z14    0    yend+bowtip2    ib+z13    Rbow
GW    89    5    0    yend+bowtip2    ib+z13    0    yend+bowtip2    ib+z16    Rbow
GW    90    5    0    yend+bowtip2    ib    0    yend+bowtip2    ib-z13    Rbow
GW    91    5    0    yend+bowtip2    ib-z13    0    yend+bowtip2    ib-z16    Rbow
GW    92    3    0    yend+bowtip2    ib-z13    0    y19    ib-z14    Rbow
GW    93    7    0    yend+bowtip2    ib+z16    0    yend    ib+z20    Rbow
GW    94    7    0    yend+bowtip2    ib-z16    0    yend    ib-z20    Rbow
GW    95    5    0    yend+bowtip2    ib    0    y22    ib    Rbow
GW    96    5    0    y22    ib    0    yend+bowtip9    ib+z13    Rbow
GW    97    5    0    yend+bowtip9    ib+z13    0    yend+bowtip7    ib+z16    Rbow
GW    98    7    0    yend+bowtip7    ib+z16    0    yend    ib+z20    Rbow
GW    99    3    0    yend+bowtip7    ib+z16    0    yend+bowtip2    ib+z16    Rbow
GW    100    7    0    yend+bowtip2    ib    0    yend+bowtip9    ib+z13    Rbow
GW    101    5    0    yend+bowtip2    ib+z13    0    yend+bowtip9    ib+z13    Rbow
GW    102    7    0    yend+bowtip9    ib+z13    0    yend+bowtip2    ib+z16    Rbow
GW    103    5    0    y22    ib    0    yend+bowtip9    ib-z13    Rbow
GW    104    5    0    yend+bowtip9    ib-z13    0    yend+bowtip7    ib-z16    Rbow
GW    105    7    0    yend+bowtip7    ib-z16    0    yend    ib-z20    Rbow
GW    106    3    0    yend+bowtip7    ib-z16    0    yend+bowtip2    ib-z16    Rbow
GW    107    7    0    yend+bowtip2    ib    0    yend+bowtip9    ib-z13    Rbow
GW    108    5    0    yend+bowtip2    ib-z13    0    yend+bowtip9    ib-z13    Rbow
GW    109    7    0    yend+bowtip9    ib-z13    0    yend+bowtip2    ib-z16    Rbow
GX    500    010
GW    999    3    0    feed    0    0    -feed    0    Rsrc
GS    0    0    0.0254
GE    0
LD    5    0    0    0    Cond    'Conductivity
GN    -1
EK
EX    0    999    2    0    1    0    0    'GW1 is SOURCE wire
FR    0    48    0    0    470    3
RP    0    1    73    1510    90    0    1    5    0    0
EN
Model also allows you to adjust bowtie length and depth, and see how it affects the results. I also modeled a solid bowtie, with a flat end, and the results are very similar.

One of the reasons that solid bowties aren't used as much, is that they catch a lot of wind. Not a problem for an indoor antenna, but can be a problem, for an outdoor antenna.


·
Registered
Joined
·
119 Posts
Discussion Starter #11
Just ran your version at auto-segmentation 63, with no warnings.

Ran it at auto-segmentation 105 with plenty of warnings.

The AGT on both was close to .99 or .98

The swr, gain, and impedance was looked the same to me.

I think you 4nec model has too low resolution to show the proper swr, and impedance.

Think it's hard to get a solid sheet bow-tie to work properly in 4nec2, without a high resolution
model.

There has been has been research on this type of bow-tie showing, that it definitely improves
bandwidth, and impedance.

Next, want to try a bow-tie with rounded corners.

It's really supposed to improve the bandwidth & impedance curve.


·
Registered
Joined
·
119 Posts
Discussion Starter #12
"Been thinking about the proper way to model a metal sheet bow-tie.

Looking at holl_ands nec model of the solid metal triangular bow-tie, can see that it uses very
crude resolution.

A better way is needed to represent the way electricity actually flows in the bow-tie.

Here is a better way to represent a solid metal triangular bow-tie in 4nec2.




Nec code of rounded bow-tie.

The only problem is, I can't get the 4nec AGT number close enough to one.

Code:
CM UHF Solid Triangle 1-Bay Bowtie, NO Refl, 4nec2 by Lassar, 28 June 2020
CM AUTOSEG (32)
CM can't get the 4nec AGT number close to one. Needs work.
CE
GW    1    3    0    -0.5    0    0    0.5    0    0.03204186
GW    2    5    0    1.97510036    1.32818633    0    3.45020072    2.65637266    0.051
GW    3    5    0    3.45020072    2.65637266    0    4.92530108    3.98455899    0.051
GW    4    5    0    4.92530108    3.98455899    0    6.40040144    5.31274532    0.051
GW    5    5    0    6.40040144    5.31274532    0    7.8755018    6.64093165    0.051
GW    6    3    0    0.5    0    0    1.35950567    0.49623583    0.051
GW    653    3    0    1.35950567    0.49623583    0    2.21901134    0.99247166    0.051
GW    7    5    0    2.21901134    0.99247166    0    3.93802269    1.98494332    0.051
GW    8    5    0    3.93802269    1.98494332    0    5.65703403    2.97741499    0.051
GW    9    5    0    5.65703403    2.97741499    0    7.37604538    3.96988665    0.051
GW    10    5    0    7.37604538    3.96988665    0    9.09505672    4.96235831    0.051
GW    11    3    0    0.5    0    0    1.44389664    0.30669061    0.051
GW    654    3    0    1.44389664    0.30669061    0    2.38779328    0.61338122    0.051
GW    12    5    0    2.38779328    0.61338122    0    4.27558657    1.22676244    0.051
GW    13    5    0    4.27558657    1.22676244    0    6.16337985    1.84014366    0.051
GW    14    5    0    6.16337985    1.84014366    0    8.05117313    2.45352488    0.051
GW    15    5    0    8.05117313    2.45352488    0    9.93896641    3.0669061    0.051
GW    16    3    0    0.5    0    0    1.4870348    0.10374154    0.051
GW    655    3    0    1.4870348    0.10374154    0    2.4740696    0.20748308    0.051
GW    17    5    0    2.4740696    0.20748308    0    4.44813919    0.41496615    0.051
GW    18    5    0    4.44813919    0.41496615    0    6.42220879    0.62244923    0.051
GW    19    5    0    6.42220879    0.62244923    0    8.39627839    0.8299323    0.051
GW    20    5    0    8.39627839    0.8299323    0    10.370348    1.03741538    0.051
GW    21    3    0    0.5    0    0    1.4870348    -0.1037416    0.051
GW    656    3    0    1.4870348    -0.1037416    0    2.4740696    -0.2074831    0.051
GW    22    5    0    2.4740696    -0.2074831    0    4.44813919    -0.4149662    0.051
GW    23    5    0    4.44813919    -0.4149662    0    6.42220879    -0.6224492    0.051
GW    24    5    0    6.42220879    -0.6224492    0    8.39627839    -0.8299323    0.051
GW    25    5    0    8.39627839    -0.8299323    0    10.370348    -1.0374154    0.051
GW    26    3    0    0.5    0    0    1.44389664    -0.3066906    0.051
GW    657    3    0    1.44389664    -0.3066906    0    2.38779328    -0.6133812    0.051
GW    27    5    0    2.38779328    -0.6133812    0    4.27558657    -1.2267624    0.051
GW    28    5    0    4.27558657    -1.2267624    0    6.16337985    -1.8401437    0.051
GW    29    5    0    6.16337985    -1.8401437    0    8.05117313    -2.4535249    0.051
GW    30    5    0    8.05117313    -2.4535249    0    9.93896641    -3.0669061    0.051
GW    31    3    0    0.5    0    0    1.35950567    -0.4962359    0.051
GW    658    3    0    1.35950567    -0.4962359    0    2.21901134    -0.9924717    0.051
GW    32    3    0    0.5    0    0    1.23755018    0.66409317    0.051
GW    660    3    0    1.23755018    0.66409317    0    1.97510036    1.32818633    0.051
GW    33    5    0    3.93802269    -1.9849433    0    5.65703403    -2.977415    0.051
GW    34    5    0    5.65703403    -2.977415    0    7.37604538    -3.9698866    0.051
GW    35    5    0    7.37604538    -3.9698866    0    9.09505672    -4.9623583    0.051
GW    36    3    0    0.5    0    0    1.23755018    -0.6640932    0.051
GW    659    3    0    1.23755018    -0.6640932    0    1.97510036    -1.3281863    0.051
GW    37    5    0    1.97510036    -1.3281863    0    3.45020072    -2.6563727    0.051
GW    38    5    0    3.45020072    -2.6563727    0    4.92530108    -3.984559    0.051
GW    39    5    0    4.92530108    -3.984559    0    6.40040144    -5.3127453    0.051
GW    40    5    0    6.40040144    -5.3127453    0    7.8755018    -6.6409317    0.051
GW    41    1    0    1.97510036    1.32818633    0    2.21901134    0.99247166    0.051
GW    42    1    0    2.21901134    0.99247166    0    2.38779328    0.61338122    0.051
GW    43    1    0    2.38779328    0.61338122    0    2.4740696    0.20748308    0.051
GW    44    1    0    2.4740696    0.20748308    0    2.4740696    -0.2074831    0.051
GW    45    1    0    2.4740696    -0.2074831    0    2.38779328    -0.6133812    0.051
GW    46    1    0    2.38779328    -0.6133812    0    2.21901134    -0.9924717    0.051
GW    47    1    0    2.21901134    -0.9924717    0    1.97510036    -1.3281863    0.051
GW    48    3    0    3.45020072    2.65637266    0    3.93802269    1.98494332    0.051
GW    49    3    0    3.93802269    1.98494332    0    4.27558657    1.22676244    0.051
GW    50    3    0    4.27558657    1.22676244    0    4.44813919    0.41496615    0.051
GW    51    3    0    4.44813919    0.41496615    0    4.44813919    -0.4149662    0.051
GW    52    3    0    4.44813919    -0.4149662    0    4.27558657    -1.2267624    0.051
GW    53    3    0    4.27558657    -1.2267624    0    3.93802269    -1.9849433    0.051
GW    54    3    0    3.93802269    -1.9849433    0    3.45020072    -2.6563727    0.051
GW    55    3    0    4.92530108    3.98455899    0    5.65703403    2.97741499    0.051
GW    56    3    0    5.65703403    2.97741499    0    6.16337985    1.84014366    0.051
GW    57    3    0    6.16337985    1.84014366    0    6.42220879    0.62244923    0.051
GW    58    3    0    6.42220879    0.62244923    0    6.42220879    -0.6224492    0.051
GW    59    3    0    6.42220879    -0.6224492    0    6.16337985    -1.8401437    0.051
GW    60    3    0    6.16337985    -1.8401437    0    5.65703403    -2.977415    0.051
GW    61    3    0    5.65703403    -2.977415    0    4.92530108    -3.984559    0.051
GW    62    5    0    6.40040144    5.31274532    0    7.37604538    3.96988665    0.051
GW    63    5    0    7.37604538    3.96988665    0    8.05117313    2.45352488    0.051
GW    64    5    0    8.05117313    2.45352488    0    8.39627839    0.8299323    0.051
GW    65    5    0    8.39627839    0.8299323    0    8.39627839    -0.8299323    0.051
GW    66    5    0    8.39627839    -0.8299323    0    8.05117313    -2.4535249    0.051
GW    67    5    0    8.05117313    -2.4535249    0    7.37604538    -3.9698866    0.051
GW    68    5    0    7.37604538    -3.9698866    0    6.40040144    -5.3127453    0.051
GW    69    5    0    7.8755018    6.64093165    0    9.09505672    4.96235831    0.051
GW    70    5    0    9.09505672    4.96235831    0    9.93896641    3.0669061    0.051
GW    71    5    0    9.93896641    3.0669061    0    10.370348    1.03741538    0.051
GW    72    5    0    10.370348    1.03741538    0    10.370348    -1.0374154    0.051
GW    73    5    0    10.370348    -1.0374154    0    9.93896641    -3.0669061    0.051
GW    74    5    0    9.93896641    -3.0669061    0    9.09505672    -4.9623583    0.051
GW    75    5    0    9.09505672    -4.9623583    0    7.8755018    -6.6409317    0.051
GW    76    5    0    9.09505672    4.96235831    0    7.68276394    5.24220297    0.051
GW    77    3    0    7.68276394    5.24220297    0    6.40040144    5.31274532    0.051
GW    78    5    0    9.93896641    3.0669061    0    8.58325995    3.5881639    0.051
GW    79    3    0    8.58325995    3.5881639    0    7.37604538    3.96988665    0.051
GW    80    3    0    7.37604538    3.96988665    0    6.09498873    4.07024611    0.051
GW    81    3    0    6.09498873    4.07024611    0    4.92530108    3.98455899    0.051
GW    82    3    0    8.05117313    2.45352488    0    6.79841913    2.80849317    0.051
GW    83    3    0    6.79841913    2.80849317    0    5.65703403    2.97741499    0.051
GW    86    5    0    10.370348    1.03741538    0    9.11795314    1.83849347    0.051
GW    87    3    0    9.11795314    1.83849347    0    8.05117313    2.45352488    0.051
GW    88    3    0    8.39627839    0.8299323    0    7.25198688    1.41643331    0.051
GW    89    3    0    7.25198688    1.41643331    0    6.16337985    1.84014366    0.051
GW    95    3    0    6.40040144    -5.3127453    0    6.05655996    -4.0288011    0.051
GW    96    3    0    6.05655996    -4.0288011    0    5.65703403    -2.977415    0.051
GW    97    3    0    7.37604538    -3.9698866    0    6.78827406    -2.7538523    0.051
GW    98    3    0    6.78827406    -2.7538523    0    6.16337985    -1.8401437    0.051
GW    99    3    0    8.05117313    -2.4535249    0    7.23669096    -1.421708    0.051
GW    100    3    0    7.23669096    -1.421708    0    6.42220879    -0.6224492    0.051
GW    101    3    0    8.39627839    -0.8299323    0    7.36283988    0.01253755    0.051
GW    102    3    0    7.36283988    0.01253755    0    6.42220879    0.62244923    0.051
GW    103    5    0    10.370348    -1.0374154    0    9.37403244    0.05904917    0.051
GW    104    3    0    9.37403244    0.05904917    0    8.39627839    0.8299323    0.051
GW    105    3    0    9.93896641    -3.0669061    0    9.1676224    -1.9484192    0.051
GW    106    3    0    9.1676224    -1.9484192    0    8.39627839    -0.8299323    0.051
GW    107    5    0    9.09505672    -4.9623583    0    8.55455343    -3.5218951    0.051
GW    108    3    0    8.55455343    -3.5218951    0    8.05117313    -2.4535249    0.051
GW    109    5    0    7.8755018    -6.6409317    0    7.60721209    -5.1775021    0.051
GW    110    3    0    7.60721209    -5.1775021    0    7.37604538    -3.9698866    0.051
GW    111    3    0    6.40040144    -5.3127453    0    7.60721209    -5.1775021    0.051
GW    112    5    0    7.60721209    -5.1775021    0    9.09505672    -4.9623583    0.051
GW    113    3    0    7.37604538    -3.9698866    0    8.55455343    -3.5218951    0.051
GW    114    5    0    9.93896641    -3.0669061    0    8.55455343    -3.5218951    0.051
GW    115    3    0    8.05117313    -2.4535249    0    9.1676224    -1.9484192    0.051
GW    116    5    0    10.370348    -1.0374154    0    9.1676224    -1.9484192    0.051
GW    117    3    0    8.39627839    -0.8299323    0    9.37403244    0.05904917    0.051
GW    118    5    0    10.370348    1.03741538    0    9.37403244    0.05904917    0.051
GW    119    5    0    9.93896641    3.0669061    0    9.11795314    1.83849347    0.051
GW    120    3    0    8.39627839    0.8299323    0    9.11795314    1.83849347    0.051
GW    121    3    0    8.05117313    2.45352488    0    8.58325995    3.5881639    0.051
GW    122    5    0    9.09505672    4.96235831    0    8.58325995    3.5881639    0.051
GW    123    5    0    7.8755018    6.64093165    0    7.68276394    5.24220297    0.051
GW    124    3    0    7.37604538    3.96988665    0    7.68276394    5.24220297    0.051
GW    125    3    0    4.92530108    -3.984559    0    6.05655996    -4.0288011    0.051
GW    126    3    0    6.05655996    -4.0288011    0    7.37604538    -3.9698866    0.051
GW    127    3    0    5.65703403    -2.977415    0    6.78827406    -2.7538523    0.051
GW    128    3    0    8.05117313    -2.4535249    0    6.78827406    -2.7538523    0.051
GW    129    3    0    6.16337985    -1.8401437    0    7.23669096    -1.421708    0.051
GW    130    3    0    8.39627839    -0.8299323    0    7.23669096    -1.421708    0.051
GW    131    3    0    6.42220879    -0.6224492    0    7.36283988    0.01253755    0.051
GW    132    3    0    8.39627839    0.8299323    0    7.36283988    0.01253755    0.051
GW    133    3    0    8.05117313    2.45352488    0    7.25198688    1.41643331    0.051
GW    134    3    0    6.42220879    0.62244923    0    7.25198688    1.41643331    0.051
GW    135    3    0    7.37604538    3.96988665    0    6.79841913    2.80849317    0.051
GW    136    3    0    6.16337985    1.84014366    0    6.79841913    2.80849317    0.051
GW    137    3    0    6.40040144    5.31274532    0    6.09498873    4.07024611    0.051
GW    138    3    0    5.65703403    2.97741499    0    6.09498873    4.07024611    0.051
GW    409    3    0    4.92530108    3.98455899    0    4.50590783    2.89172772    0.051
GW    437    3    0    4.50590783    2.89172772    0    3.93802269    1.98494332    0.051
GW    410    3    0    4.27558657    1.22676244    0    5.0219948    1.99743758    0.051
GW    436    3    0    5.0219948    1.99743758    0    5.65703403    2.97741499    0.051
GW    411    3    0    4.44813919    0.41496615    0    5.35216322    0.97639205    0.051
GW    435    3    0    5.35216322    0.97639205    0    6.16337985    1.84014366    0.051
GW    412    3    0    4.44813919    -0.4149662    0    5.46301624    -0.0357933    0.051
GW    434    3    0    5.46301624    -0.0357933    0    6.42220879    0.62244923    0.051
GW    413    3    0    4.27558657    -1.2267624    0    5.35817843    -1.0060011    0.051
GW    433    3    0    5.35817843    -1.0060011    0    6.42220879    -0.6224492    0.051
GW    414    3    0    3.93802269    -1.9849433    0    5.00429752    -2.0171946    0.051
GW    432    3    0    5.00429752    -2.0171946    0    6.16337985    -1.8401437    0.051
GW    415    3    0    3.45020072    -2.6563727    0    4.56289812    -2.9331729    0.051
GW    431    3    0    4.56289812    -2.9331729    0    5.65703403    -2.977415    0.051
GW    416    5    0    2.21901134    -0.9924717    0    3.93802269    -1.9849433    0.051
GW    417    3    0    1.97510036    -1.3281863    0    2.93335968    -1.7263322    0.051
GW    430    3    0    2.93335968    -1.7263322    0    3.93802269    -1.9849433    0.051
GW    418    3    0    2.21901134    -0.9924717    0    3.21481636    -1.2200822    0.051
GW    429    3    0    3.21481636    -1.2200822    0    4.27558657    -1.2267624    0.051
GW    419    3    0    2.38779328    -0.6133812    0    3.39940476    -0.6478946    0.051
GW    428    3    0    3.39940476    -0.6478946    0    4.44813919    -0.4149662    0.051
GW    420    3    0    2.4740696    -0.2074831    0    3.46574477    1.99731e-3    0.051
GW    427    3    0    3.46574477    1.99731e-3    0    4.44813919    0.41496615    0.051
GW    421    3    0    2.4740696    0.20748308    0    3.39338958    0.58340191    0.051
GW    426    3    0    3.39338958    0.58340191    0    4.27558657    1.22676244    0.051
GW    422    3    0    2.38779328    0.61338122    0    3.20003096    1.18288322    0.051
GW    425    3    0    3.20003096    1.18288322    0    3.93802269    1.98494332    0.051
GW    423    3    0    2.21901134    0.99247166    0    2.88565011    1.74302683    0.051
GW    424    3    0    2.88565011    1.74302683    0    3.45020072    2.65637266    0.051
GW    438    3    0    3.45020072    2.65637266    0    4.50590783    2.89172772    0.051
GW    439    3    0    5.65703403    2.97741499    0    4.50590783    2.89172772    0.051
GW    440    3    0    5.0219948    1.99743758    0    3.93802269    1.98494332    0.051
GW    441    3    0    5.0219948    1.99743758    0    6.16337985    1.84014366    0.051
GW    442    3    0    4.27558657    1.22676244    0    5.35216322    0.97639205    0.051
GW    443    3    0    6.42220879    0.62244923    0    5.35216322    0.97639205    0.051
GW    444    3    0    4.44813919    0.41496615    0    5.46301624    -0.0357933    0.051
GW    445    3    0    6.42220879    -0.6224492    0    5.46301624    -0.0357933    0.051
GW    446    3    0    4.44813919    -0.4149662    0    5.35817843    -1.0060011    0.051
GW    447    3    0    6.16337985    -1.8401437    0    5.35817843    -1.0060011    0.051
GW    448    3    0    4.27558657    -1.2267624    0    5.00429752    -2.0171946    0.051
GW    449    3    0    5.65703403    -2.977415    0    5.00429752    -2.0171946    0.051
GW    450    3    0    3.93802269    -1.9849433    0    4.56289812    -2.9331729    0.051
GW    451    3    0    4.92530108    -3.984559    0    4.56289812    -2.9331729    0.051
GW    452    3    0    2.21901134    -0.9924717    0    2.93335968    -1.7263322    0.051
GW    453    3    0    3.45020072    -2.6563727    0    2.93335968    -1.7263322    0.051
GW    454    3    0    3.93802269    -1.9849433    0    3.21481636    -1.2200822    0.051
GW    455    3    0    2.38779328    -0.6133812    0    3.21481636    -1.2200822    0.051
GW    456    3    0    2.4740696    -0.2074831    0    3.39940476    -0.6478946    0.051
GW    457    3    0    4.27558657    -1.2267624    0    3.39940476    -0.6478946    0.051
GW    458    3    0    2.4740696    0.20748308    0    3.46574477    1.99731e-3    0.051
GW    459    3    0    4.44813919    -0.4149662    0    3.46574477    1.99731e-3    0.051
GW    460    3    0    2.38779328    0.61338122    0    3.39338958    0.58340191    0.051
GW    461    3    0    4.44813919    0.41496615    0    3.39338958    0.58340191    0.051
GW    462    3    0    2.21901134    0.99247166    0    3.20003096    1.18288322    0.051
GW    463    3    0    4.27558657    1.22676244    0    3.20003096    1.18288322    0.051
GW    464    3    0    1.97510036    1.32818633    0    2.88565011    1.74302683    0.051
GW    465    3    0    3.93802269    1.98494332    0    2.88565011    1.74302683    0.051
GW    661    1    0    1.23755018    0.66409317    0    1.35950567    0.49623583    0.051
GW    662    1    0    1.35950567    0.49623583    0    1.44389664    0.30669061    0.051
GW    663    1    0    1.44389664    0.30669061    0    1.4870348    0.10374154    0.051
GW    664    1    0    1.4870348    0.10374154    0    1.4870348    -0.1037416    0.051
GW    665    1    0    1.4870348    -0.1037416    0    1.44389664    -0.3066906    0.051
GW    666    1    0    1.44389664    -0.3066906    0    1.35950567    -0.4962359    0.051
GW    667    1    0    1.23755018    -0.6640932    0    1.35950567    -0.4962359    0.051
GW    668    1    0    1.97510036    1.32818633    0    1.71370671    0.86860644    0.051
GW    681    1    0    1.71370671    0.86860644    0    1.35950567    0.49623583    0.051
GW    669    1    0    2.21901134    0.99247166    0    1.86625677    0.60888346    0.051
GW    680    1    0    1.86625677    0.60888346    0    1.44389664    0.30669061    0.051
GW    670    1    0    2.38779328    0.61338122    0    1.94437459    0.28879394    0.051
GW    679    1    0    1.94437459    0.28879394    0    1.4870348    0.10374154    0.051
GW    671    1    0    2.4740696    0.20748308    0    1.97591183    -0.0178967    0.051
GW    678    1    0    1.97591183    -0.0178967    0    1.4870348    -0.1037416    0.051
GW    672    1    0    2.4740696    -0.2074831    0    1.94970238    -0.3123194    0.051
GW    677    1    0    1.94970238    -0.3123194    0    1.44389664    -0.3066906    0.051
GW    673    1    0    2.38779328    -0.6133812    0    1.86436873    -0.6042271    0.051
GW    676    1    0    1.86436873    -0.6042271    0    1.35950567    -0.4962359    0.051
GW    674    1    0    2.21901134    -0.9924717    0    1.70043854    -0.883515    0.051
GW    675    1    0    1.70043854    -0.883515    0    1.23755018    -0.6640932    0.051
GW    682    1    0    1.23755018    0.66409317    0    1.71370671    0.86860644    0.051
GW    683    1    0    2.21901134    0.99247166    0    1.71370671    0.86860644    0.051
GW    684    1    0    1.35950567    0.49623583    0    1.86625677    0.60888346    0.051
GW    685    1    0    2.38779328    0.61338122    0    1.86625677    0.60888346    0.051
GW    686    1    0    1.44389664    0.30669061    0    1.94437459    0.28879394    0.051
GW    687    1    0    2.4740696    0.20748308    0    1.94437459    0.28879394    0.051
GW    688    1    0    1.4870348    0.10374154    0    1.97591183    -0.0178967    0.051
GW    689    1    0    2.4740696    -0.2074831    0    1.97591183    -0.0178967    0.051
GW    690    1    0    1.4870348    -0.1037416    0    1.94970238    -0.3123194    0.051
GW    691    1    0    2.38779328    -0.6133812    0    1.94970238    -0.3123194    0.051
GW    692    1    0    1.44389664    -0.3066906    0    1.86436873    -0.6042271    0.051
GW    693    1    0    2.21901134    -0.9924717    0    1.86436873    -0.6042271    0.051
GW    694    1    0    1.35950567    -0.4962359    0    1.70043854    -0.883515    0.051
GW    695    1    0    1.97510036    -1.3281863    0    1.70043854    -0.883515    0.051
GW    696    5    0    -1.9752834    -1.3304325    0    -3.4503838    -2.6586187    0.051
GW    697    5    0    -3.4503838    -2.6586187    0    -4.9254842    -3.9868049    0.051
GW    698    5    0    -4.9254842    -3.9868049    0    -6.4005846    -5.3149911    0.051
GW    699    5    0    -6.4005846    -5.3149911    0    -7.875685    -6.6431778    0.051
GW    700    3    0    -0.5    0    0    -1.3596889    -0.4984817    0.051
GW    701    3    0    -1.3596889    -0.4984817    0    -2.2191945    -0.9947175    0.051
GW    702    5    0    -2.2191945    -0.9947175    0    -3.9382059    -1.9871892    0.051
GW    703    5    0    -3.9382059    -1.9871892    0    -5.6572173    -2.9796608    0.051
GW    704    5    0    -5.6572173    -2.9796608    0    -7.3762283    -3.9721325    0.051
GW    705    5    0    -7.3762283    -3.9721325    0    -9.0952397    -4.9646041    0.051
GW    706    3    0    -0.5    0    0    -1.4440799    -0.3089364    0.051
GW    707    3    0    -1.4440799    -0.3089364    0    -2.3879763    -0.6156274    0.051
GW    708    5    0    -2.3879763    -0.6156274    0    -4.2757697    -1.2290085    0.051
GW    709    5    0    -4.2757697    -1.2290085    0    -6.163563    -1.8423896    0.051
GW    710    5    0    -6.163563    -1.8423896    0    -8.0513563    -2.4557711    0.051
GW    711    5    0    -8.0513563    -2.4557711    0    -9.9391496    -3.0691522    0.051
GW    712    3    0    -0.5    0    0    -1.4872177    -0.1059876    0.051
GW    713    3    0    -1.4872177    -0.1059876    0    -2.4742527    -0.2097289    0.051
GW    714    5    0    -2.4742527    -0.2097289    0    -4.4483224    -0.417212    0.051
GW    715    5    0    -4.4483224    -0.417212    0    -6.4223917    -0.6246951    0.051
GW    716    5    0    -6.4223917    -0.6246951    0    -8.3964614    -0.8321782    0.051
GW    717    5    0    -8.3964614    -0.8321782    0    -10.370531    -1.0396612    0.051
GW    718    3    0    -0.5    0    0    -1.4872177    0.10149547    0.051
GW    719    3    0    -1.4872177    0.10149547    0    -2.4742527    0.2052372    0.051
GW    720    5    0    -2.4742527    0.2052372    0    -4.4483224    0.41272027    0.051
GW    721    5    0    -4.4483224    0.41272027    0    -6.4223917    0.62020334    0.051
GW    722    5    0    -6.4223917    0.62020334    0    -8.3964614    0.82768641    0.051
GW    723    5    0    -8.3964614    0.82768641    0    -10.370531    1.03516948    0.051
GW    724    3    0    -0.5    0    0    -1.4440799    0.30444468    0.051
GW    725    3    0    -1.4440799    0.30444468    0    -2.3879763    0.61113523    0.051
GW    726    5    0    -2.3879763    0.61113523    0    -4.2757697    1.22451633    0.051
GW    727    5    0    -4.2757697    1.22451633    0    -6.163563    1.83789783    0.051
GW    728    5    0    -6.163563    1.83789783    0    -8.0513563    2.45127893    0.051
GW    729    5    0    -8.0513563    2.45127893    0    -9.9391496    3.06466003    0.051
GW    730    3    0    -0.5    0    0    -1.3596889    0.49398995    0.051
GW    731    3    0    -1.3596889    0.49398995    0    -2.2191945    0.99022578    0.051
GW    732    3    0    -0.5    0    0    -1.2377334    -0.6663392    0.051
GW    733    3    0    -1.2377334    -0.6663392    0    -1.9752834    -1.3304325    0.051
GW    734    5    0    -3.9382059    1.98269743    0    -5.6572173    2.97516909    0.051
GW    735    5    0    -5.6572173    2.97516909    0    -7.3762283    3.96764074    0.051
GW    736    5    0    -7.3762283    3.96764074    0    -9.0952397    4.9601124    0.051
GW    737    3    0    -0.5    0    0    -1.2377334    0.66184704    0.051
GW    738    3    0    -1.2377334    0.66184704    0    -1.9752834    1.32594035    0.051
GW    739    5    0    -1.9752834    1.32594035    0    -3.4503838    2.65412657    0.051
GW    740    5    0    -3.4503838    2.65412657    0    -4.9254842    3.98231318    0.051
GW    741    5    0    -4.9254842    3.98231318    0    -6.4005846    5.3104994    0.051
GW    742    5    0    -6.4005846    5.3104994    0    -7.875685    6.63868562    0.051
GW    743    1    0    -1.9752834    -1.3304325    0    -2.2191945    -0.9947175    0.051
GW    744    1    0    -2.2191945    -0.9947175    0    -2.3879763    -0.6156274    0.051
GW    745    1    0    -2.3879763    -0.6156274    0    -2.4742527    -0.2097289    0.051
GW    746    1    0    -2.4742527    -0.2097289    0    -2.4742527    0.2052372    0.051
GW    747    1    0    -2.4742527    0.2052372    0    -2.3879763    0.61113523    0.051
GW    748    1    0    -2.3879763    0.61113523    0    -2.2191945    0.99022578    0.051
GW    749    1    0    -2.2191945    0.99022578    0    -1.9752834    1.32594035    0.051
GW    750    3    0    -3.4503838    -2.6586187    0    -3.9382059    -1.9871892    0.051
GW    751    3    0    -3.9382059    -1.9871892    0    -4.2757697    -1.2290085    0.051
GW    752    3    0    -4.2757697    -1.2290085    0    -4.4483224    -0.417212    0.051
GW    753    3    0    -4.4483224    -0.417212    0    -4.4483224    0.41272027    0.051
GW    754    3    0    -4.4483224    0.41272027    0    -4.2757697    1.22451633    0.051
GW    755    3    0    -4.2757697    1.22451633    0    -3.9382059    1.98269743    0.051
GW    756    3    0    -3.9382059    1.98269743    0    -3.4503838    2.65412657    0.051
GW    757    3    0    -4.9254842    -3.9868049    0    -5.6572173    -2.9796608    0.051
GW    758    3    0    -5.6572173    -2.9796608    0    -6.163563    -1.8423896    0.051
GW    759    3    0    -6.163563    -1.8423896    0    -6.4223917    -0.6246951    0.051
GW    760    3    0    -6.4223917    -0.6246951    0    -6.4223917    0.62020334    0.051
GW    761    3    0    -6.4223917    0.62020334    0    -6.163563    1.83789783    0.051
GW    762    3    0    -6.163563    1.83789783    0    -5.6572173    2.97516909    0.051
GW    763    3    0    -5.6572173    2.97516909    0    -4.9254842    3.98231318    0.051
GW    764    5    0    -6.4005846    -5.3149911    0    -7.3762283    -3.9721325    0.051
GW    765    5    0    -7.3762283    -3.9721325    0    -8.0513563    -2.4557711    0.051
GW    766    5    0    -8.0513563    -2.4557711    0    -8.3964614    -0.8321782    0.051
GW    767    5    0    -8.3964614    -0.8321782    0    -8.3964614    0.82768641    0.051
GW    768    5    0    -8.3964614    0.82768641    0    -8.0513563    2.45127893    0.051
GW    769    5    0    -8.0513563    2.45127893    0    -7.3762283    3.96764074    0.051
GW    770    5    0    -7.3762283    3.96764074    0    -6.4005846    5.3104994    0.051
GW    771    5    0    -7.875685    -6.6431778    0    -9.0952397    -4.9646041    0.051
GW    772    5    0    -9.0952397    -4.9646041    0    -9.9391496    -3.0691522    0.051
GW    773    5    0    -9.9391496    -3.0691522    0    -10.370531    -1.0396612    0.051
GW    774    5    0    -10.370531    -1.0396612    0    -10.370531    1.03516948    0.051
GW    775    5    0    -10.370531    1.03516948    0    -9.9391496    3.06466003    0.051
GW    776    5    0    -9.9391496    3.06466003    0    -9.0952397    4.9601124    0.051
GW    777    5    0    -9.0952397    4.9601124    0    -7.875685    6.63868562    0.051
GW    778    5    0    -9.0952397    -4.9646041    0    -7.6829472    -5.244449    0.051
GW    779    3    0    -7.6829472    -5.244449    0    -6.4005846    -5.3149911    0.051
GW    780    5    0    -9.9391496    -3.0691522    0    -8.5834429    -3.59041    0.051
GW    781    3    0    -8.5834429    -3.59041    0    -7.3762283    -3.9721325    0.051
GW    782    3    0    -7.3762283    -3.9721325    0    -6.0951716    -4.0724919    0.051
GW    783    3    0    -6.0951716    -4.0724919    0    -4.9254842    -3.9868049    0.051
GW    784    3    0    -8.0513563    -2.4557711    0    -6.7986023    -2.8107392    0.051
GW    785    3    0    -6.7986023    -2.8107392    0    -5.6572173    -2.9796608    0.051
GW    786    5    0    -10.370531    -1.0396612    0    -9.1181362    -1.8407396    0.051
GW    787    3    0    -9.1181362    -1.8407396    0    -8.0513563    -2.4557711    0.051
GW    788    3    0    -8.3964614    -0.8321782    0    -7.25217    -1.4186793    0.051
GW    789    3    0    -7.25217    -1.4186793    0    -6.163563    -1.8423896    0.051
GW    790    3    0    -6.4005846    5.3104994    0    -6.0567429    4.02655491    0.051
GW    791    3    0    -6.0567429    4.02655491    0    -5.6572173    2.97516909    0.051
GW    792    3    0    -7.3762283    3.96764074    0    -6.7884571    2.75160649    0.051
GW    793    3    0    -6.7884571    2.75160649    0    -6.163563    1.83789783    0.051
GW    794    3    0    -8.0513563    2.45127893    0    -7.236874    1.419462    0.051
GW    795    3    0    -7.236874    1.419462    0    -6.4223917    0.62020334    0.051
GW    796    3    0    -8.3964614    0.82768641    0    -7.3630228    -0.0147837    0.051
GW    797    3    0    -7.3630228    -0.0147837    0    -6.4223917    -0.6246951    0.051
GW    798    5    0    -10.370531    1.03516948    0    -9.3742157    -0.0612951    0.051
GW    799    3    0    -9.3742157    -0.0612951    0    -8.3964614    -0.8321782    0.051
GW    800    3    0    -9.9391496    3.06466003    0    -9.1678055    1.94617303    0.051
GW    801    3    0    -9.1678055    1.94617303    0    -8.3964614    0.82768641    0.051
GW    802    5    0    -9.0952397    4.9601124    0    -8.5547366    3.51964901    0.051
GW    803    3    0    -8.5547366    3.51964901    0    -8.0513563    2.45127893    0.051
GW    804    5    0    -7.875685    6.63868562    0    -7.6073952    5.1752561    0.051
GW    805    3    0    -7.6073952    5.1752561    0    -7.3762283    3.96764074    0.051
GW    806    3    0    -6.4005846    5.3104994    0    -7.6073952    5.1752561    0.051
GW    807    5    0    -7.6073952    5.1752561    0    -9.0952397    4.9601124    0.051
GW    808    3    0    -7.3762283    3.96764074    0    -8.5547366    3.51964901    0.051
GW    809    5    0    -9.9391496    3.06466003    0    -8.5547366    3.51964901    0.051
GW    810    3    0    -8.0513563    2.45127893    0    -9.1678055    1.94617303    0.051
GW    811    5    0    -10.370531    1.03516948    0    -9.1678055    1.94617303    0.051
GW    812    3    0    -8.3964614    0.82768641    0    -9.3742157    -0.0612951    0.051
GW    813    5    0    -10.370531    -1.0396612    0    -9.3742157    -0.0612951    0.051
GW    814    5    0    -9.9391496    -3.0691522    0    -9.1181362    -1.8407396    0.051
GW    815    3    0    -8.3964614    -0.8321782    0    -9.1181362    -1.8407396    0.051
GW    816    3    0    -8.0513563    -2.4557711    0    -8.5834429    -3.59041    0.051
GW    817    5    0    -9.0952397    -4.9646041    0    -8.5834429    -3.59041    0.051
GW    818    5    0    -7.875685    -6.6431778    0    -7.6829472    -5.244449    0.051
GW    819    3    0    -7.3762283    -3.9721325    0    -7.6829472    -5.244449    0.051
GW    820    3    0    -4.9254842    3.98231318    0    -6.0567429    4.02655491    0.051
GW    821    3    0    -6.0567429    4.02655491    0    -7.3762283    3.96764074    0.051
GW    822    3    0    -5.6572173    2.97516909    0    -6.7884571    2.75160649    0.051
GW    823    3    0    -8.0513563    2.45127893    0    -6.7884571    2.75160649    0.051
GW    824    3    0    -6.163563    1.83789783    0    -7.236874    1.419462    0.051
GW    825    3    0    -8.3964614    0.82768641    0    -7.236874    1.419462    0.051
GW    826    3    0    -6.4223917    0.62020334    0    -7.3630228    -0.0147837    0.051
GW    827    3    0    -8.3964614    -0.8321782    0    -7.3630228    -0.0147837    0.051
GW    828    3    0    -8.0513563    -2.4557711    0    -7.25217    -1.4186793    0.051
GW    829    3    0    -6.4223917    -0.6246951    0    -7.25217    -1.4186793    0.051
GW    830    3    0    -7.3762283    -3.9721325    0    -6.7986023    -2.8107392    0.051
GW    831    3    0    -6.163563    -1.8423896    0    -6.7986023    -2.8107392    0.051
GW    832    3    0    -6.4005846    -5.3149911    0    -6.0951716    -4.0724919    0.051
GW    833    3    0    -5.6572173    -2.9796608    0    -6.0951716    -4.0724919    0.051
GW    834    3    0    -4.9254842    -3.9868049    0    -4.5060909    -2.8939738    0.051
GW    835    3    0    -4.5060909    -2.8939738    0    -3.9382059    -1.9871892    0.051
GW    836    3    0    -4.2757697    -1.2290085    0    -5.0221779    -1.9996837    0.051
GW    837    3    0    -5.0221779    -1.9996837    0    -5.6572173    -2.9796608    0.051
GW    838    3    0    -4.4483224    -0.417212    0    -5.3523464    -0.978638    0.051
GW    839    3    0    -5.3523464    -0.978638    0    -6.163563    -1.8423896    0.051
GW    840    3    0    -4.4483224    0.41272027    0    -5.4631992    0.03354743    0.051
GW    841    3    0    -5.4631992    0.03354743    0    -6.4223917    -0.6246951    0.051
GW    842    3    0    -4.2757697    1.22451633    0    -5.3583614    1.00375531    0.051
GW    843    3    0    -5.3583614    1.00375531    0    -6.4223917    0.62020334    0.051
GW    844    3    0    -3.9382059    1.98269743    0    -5.0044807    2.01494862    0.051
GW    845    3    0    -5.0044807    2.01494862    0    -6.163563    1.83789783    0.051
GW    846    3    0    -3.4503838    2.65412657    0    -4.5630811    2.93092696    0.051
GW    847    3    0    -4.5630811    2.93092696    0    -5.6572173    2.97516909    0.051
GW    848    5    0    -2.2191945    0.99022578    0    -3.9382059    1.98269743    0.051
GW    849    3    0    -1.9752834    1.32594035    0    -2.9335429    1.72408641    0.051
GW    850    3    0    -2.9335429    1.72408641    0    -3.9382059    1.98269743    0.051
GW    851    3    0    -2.2191945    0.99022578    0    -3.2149996    1.21783602    0.051
GW    852    3    0    -3.2149996    1.21783602    0    -4.2757697    1.22451633    0.051
GW    853    3    0    -2.3879763    0.61113523    0    -3.3995878    0.64564862    0.051
GW    854    3    0    -3.3995878    0.64564862    0    -4.4483224    0.41272027    0.051
GW    855    3    0    -2.4742527    0.2052372    0    -3.4659279    -4.2435e-3    0.051
GW    856    3    0    -3.4659279    -4.2435e-3    0    -4.4483224    -0.417212    0.051
GW    857    3    0    -2.4742527    -0.2097289    0    -3.3935728    -0.5856478    0.051
GW    858    3    0    -3.3935728    -0.5856478    0    -4.2757697    -1.2290085    0.051
GW    859    3    0    -2.3879763    -0.6156274    0    -3.2002141    -1.1851293    0.051
GW    860    3    0    -3.2002141    -1.1851293    0    -3.9382059    -1.9871892    0.051
GW    861    3    0    -2.2191945    -0.9947175    0    -2.885833    -1.7452726    0.051
GW    862    3    0    -2.885833    -1.7452726    0    -3.4503838    -2.6586187    0.051
GW    863    3    0    -3.4503838    -2.6586187    0    -4.5060909    -2.8939738    0.051
GW    864    3    0    -5.6572173    -2.9796608    0    -4.5060909    -2.8939738    0.051
GW    865    3    0    -5.0221779    -1.9996837    0    -3.9382059    -1.9871892    0.051
GW    866    3    0    -5.0221779    -1.9996837    0    -6.163563    -1.8423896    0.051
GW    867    3    0    -4.2757697    -1.2290085    0    -5.3523464    -0.978638    0.051
GW    868    3    0    -6.4223917    -0.6246951    0    -5.3523464    -0.978638    0.051
GW    869    3    0    -4.4483224    -0.417212    0    -5.4631992    0.03354743    0.051
GW    870    3    0    -6.4223917    0.62020334    0    -5.4631992    0.03354743    0.051
GW    871    3    0    -4.4483224    0.41272027    0    -5.3583614    1.00375531    0.051
GW    872    3    0    -6.163563    1.83789783    0    -5.3583614    1.00375531    0.051
GW    873    3    0    -4.2757697    1.22451633    0    -5.0044807    2.01494862    0.051
GW    874    3    0    -5.6572173    2.97516909    0    -5.0044807    2.01494862    0.051
GW    875    3    0    -3.9382059    1.98269743    0    -4.5630811    2.93092696    0.051
GW    876    3    0    -4.9254842    3.98231318    0    -4.5630811    2.93092696    0.051
GW    877    3    0    -2.2191945    0.99022578    0    -2.9335429    1.72408641    0.051
GW    878    3    0    -3.4503838    2.65412657    0    -2.9335429    1.72408641    0.051
GW    879    3    0    -3.9382059    1.98269743    0    -3.2149996    1.21783602    0.051
GW    880    3    0    -2.3879763    0.61113523    0    -3.2149996    1.21783602    0.051
GW    881    3    0    -2.4742527    0.2052372    0    -3.3995878    0.64564862    0.051
GW    882    3    0    -4.2757697    1.22451633    0    -3.3995878    0.64564862    0.051
GW    883    3    0    -2.4742527    -0.2097289    0    -3.4659279    -4.2435e-3    0.051
GW    884    3    0    -4.4483224    0.41272027    0    -3.4659279    -4.2435e-3    0.051
GW    885    3    0    -2.3879763    -0.6156274    0    -3.3935728    -0.5856478    0.051
GW    886    3    0    -4.4483224    -0.417212    0    -3.3935728    -0.5856478    0.051
GW    887    3    0    -2.2191945    -0.9947175    0    -3.2002141    -1.1851293    0.051
GW    888    3    0    -4.2757697    -1.2290085    0    -3.2002141    -1.1851293    0.051
GW    889    3    0    -1.9752834    -1.3304325    0    -2.885833    -1.7452726    0.051
GW    890    3    0    -3.9382059    -1.9871892    0    -2.885833    -1.7452726    0.051
GW    891    1    0    -1.2377334    -0.6663392    0    -1.3596889    -0.4984817    0.051
GW    892    1    0    -1.3596889    -0.4984817    0    -1.4440799    -0.3089364    0.051
GW    893    1    0    -1.4440799    -0.3089364    0    -1.4872177    -0.1059876    0.051
GW    894    1    0    -1.4872177    -0.1059876    0    -1.4872177    0.10149547    0.051
GW    895    1    0    -1.4872177    0.10149547    0    -1.4440799    0.30444468    0.051
GW    896    1    0    -1.4440799    0.30444468    0    -1.3596889    0.49398995    0.051
GW    897    1    0    -1.2377334    0.66184704    0    -1.3596889    0.49398995    0.051
GW    898    1    0    -1.9752834    -1.3304325    0    -1.7138897    -0.8708526    0.051
GW    899    1    0    -1.7138897    -0.8708526    0    -1.3596889    -0.4984817    0.051
GW    900    1    0    -2.2191945    -0.9947175    0    -1.8664397    -0.6111293    0.051
GW    901    1    0    -1.8664397    -0.6111293    0    -1.4440799    -0.3089364    0.051
GW    902    1    0    -2.3879763    -0.6156274    0    -1.9445578    -0.29104    0.051
GW    903    1    0    -1.9445578    -0.29104    0    -1.4872177    -0.1059876    0.051
GW    904    1    0    -2.4742527    -0.2097289    0    -1.9760949    0.01565058    0.051
GW    905    1    0    -1.9760949    0.01565058    0    -1.4872177    0.10149547    0.051
GW    906    1    0    -2.4742527    0.2052372    0    -1.9498854    0.31007342    0.051
GW    907    1    0    -1.9498854    0.31007342    0    -1.4440799    0.30444468    0.051
GW    908    1    0    -2.3879763    0.61113523    0    -1.8645519    0.60198129    0.051
GW    909    1    0    -1.8645519    0.60198129    0    -1.3596889    0.49398995    0.051
GW    910    1    0    -2.2191945    0.99022578    0    -1.7006216    0.88126909    0.051
GW    911    1    0    -1.7006216    0.88126909    0    -1.2377334    0.66184704    0.051
GW    912    1    0    -1.2377334    -0.6663392    0    -1.7138897    -0.8708526    0.051
GW    913    1    0    -2.2191945    -0.9947175    0    -1.7138897    -0.8708526    0.051
GW    914    1    0    -1.3596889    -0.4984817    0    -1.8664397    -0.6111293    0.051
GW    915    1    0    -2.3879763    -0.6156274    0    -1.8664397    -0.6111293    0.051
GW    916    1    0    -1.4440799    -0.3089364    0    -1.9445578    -0.29104    0.051
GW    917    1    0    -2.4742527    -0.2097289    0    -1.9445578    -0.29104    0.051
GW    918    1    0    -1.4872177    -0.1059876    0    -1.9760949    0.01565058    0.051
GW    919    1    0    -2.4742527    0.2052372    0    -1.9760949    0.01565058    0.051
GW    920    1    0    -1.4872177    0.10149547    0    -1.9498854    0.31007342    0.051
GW    921    1    0    -2.3879763    0.61113523    0    -1.9498854    0.31007342    0.051
GW    922    1    0    -1.4440799    0.30444468    0    -1.8645519    0.60198129    0.051
GW    923    1    0    -2.2191945    0.99022578    0    -1.8645519    0.60198129    0.051
GW    924    1    0    -1.3596889    0.49398995    0    -1.7006216    0.88126909    0.051
GW    925    1    0    -1.9752834    1.32594035    0    -1.7006216    0.88126909    0.051
GS    0    0    0.0254        ' All in in.
GE    0
EK
LD    5    0    0    0    3.e7    0
EX    0    1    2    0    1    0
GN    -1
FR    0    1    0    0    470    0
RP 0 1 73 1510 90 0 1 5 0 0


·
Registered
Joined
·
133 Posts
4nec2 can not properly compute results, for two connected wires segments, if their volumes overlap, for more than 1/3 of their lengths. It's known that you will get more accurate results, if you limit sharp angles, or very thick, short wires, that cause the volumes to overlap. Your model has a lot of wire segments, where the volumes are overlapping for their entire length. This is what is creating the long list of warnings. You will have difficulties getting AGT to =1 and will not get accurate results, until you resolve these problems. Sometimes you can ignore warnings, if the overlap is just barely over the 1/3 threshold, but you can't expect correct results, when you have wires segments that overlap their entire length. 4nec2 wasn't designed to model solid, flat surfaces, so any model, of a solid bowtie will be a compromise. Limiting or eliminating the number of warnings should create a more accurate model.


·
Registered
Joined
·
4,935 Posts
Fully confident that if there was a better way to model the sheet bowtie in 4nec2, holl_ands would have done so if he felt it was worthy enough. Full disclosure, I have not looked for any such model. Guessing people generally don't build them that way because they will increase wind load without any appreciable performance improvement.


·
Registered
Joined
·
119 Posts
Discussion Starter #15
Fully agree, that 4nec2 just isn't good enough for sheet metal.

Think I will try OpenEms.

OpenEms looks like it's able too sheet metal simulations.

Rounded bow-ties looks like the way to go, at least for indoor antennas.

These types of bow-ties is supposed to be even more ultra wide band.


·
Registered
Joined
·
119 Posts
Discussion Starter #17
Dona Mary George & Ranjitha Rajan said:
A bow-tie antenna with curved edges called as rounded edge bow-tie antenna... can widen the
bandwidth of the simple bow-tie...The better return loss, flatter input impedance and more
stable radiation patterns are the advantages.

Design and Analysis of Different Bow-Tie Configurations for Submarines
ljhavener:

holl_ands says warnings are not important, that it's the errors that are important.

Took your rounded bow tie model and fixed the Rbow radius.

Now the the swr is lower & impedance curve is flatter.

Nec code:

Code:
CM Simple 2 bay dipole with solid bowties with radiused end
CM Simple SOURCE Wire.
CM AutoSeg(33)
CE
SY Rsrc=0.0632    'SOURCE wire Radius.
SY Rbow=0.0639    'Radius (in inches) of BOWTIE elements
SY RACT=.051
SY Rfeed=0.0625    'FEEDLINE wire Radius
SY Rstub=(Rfeed+Rbow)/2    'Feed Stub to transition to bowtie
SY FedSep=1.25    'Separation (in inches) between two FEEDLINE wires
SY BowSep=12.0    'Bow Tine Separation     6.25
SY bzs=BowSep/20    'Bow Tine Separation segments
SY BowLen2=11.0    'Bow Length     11.0     10.25 to match lassars design
SY BowLen=(((BowLen2*Bowlen2))-((10*bzs)*(10*bzs)))^0.5    'BowLen Y of tips
SY bys=BowLen/10    'Bow Length Segment
SY feed=FedSep/2
SY Cond=1.67e7    'Conductivity (Copper=3.0e7, Alum=2.0e7, StainlessSteel=1.67e7)
SY ib=0    'No offset, single bowtie
SY y11=feed+(0.5*bys)
SY y12=feed+(2*bys)
SY y13=feed+(3*bys)
SY y14=feed+(4*bys)
SY y15=feed+(5*bys)
SY y16=feed+(6*bys)
SY y17=feed+(7*bys)
SY y18=feed+(8*bys)
SY y19=feed+(9*bys)
SY yend=feed+BowLen
SY y22=feed+BowLen2
SY bowtip=(BowLen2-Bowlen)/10
SY bowtip2=bowtip*2
SY bowtip4=bowtip*4
SY bowtip7=bowtip*7
SY bowtip9=bowtip*9.5
SY y20=Yend
SY y21=Yend
SY z11=1*bzs
SY z12=2*bzs
SY z13=3*bzs
SY z14=4*bzs
SY z15=5*bzs
SY z16=6*bzs
SY z17=7*bzs
SY z18=8*bzs
SY z19=9*bzs
SY z20=10*bzs
GW    1    1    0    feed    ib    0    y11    ib    Rstub
GW    2    5    0    y11    ib    0    y12    ib+z12    Rbow
GW    3    5    0    y11    ib    0    y12    ib-z12    Rbow
GW    4    7    0    y12    ib+z12    0    y12    ib-z12    Rbow
GW    5    5    0    y12    ib+z12    0    y13    ib    Rbow
GW    6    5    0    y12    ib-z12    0    y13    ib    Rbow
GW    7    3    0    y12    ib+z12    0    y13    ib+z13    Rbow
GW    8    3    0    y12    ib-z12    0    y13    ib-z13    Rbow
GW    9    5    0    y13    ib    0    y13    ib+z13    Rbow
GW    10    5    0    y13    ib    0    y13    ib-z13    Rbow
GW    11    5    0    y13    ib+z13    0    y14    ib    Rbow
GW    12    5    0    y13    ib-z13    0    y14    ib    Rbow
GW    13    3    0    y13    ib+z13    0    y14    ib+z14    Rbow
GW    14    3    0    y13    ib-z13    0    y14    ib-z14    Rbow
GW    15    7    0    y14    ib    0    y14    ib+z14    Rbow
GW    16    7    0    y14    ib    0    y14    ib-z14    Rbow
GW    17    7    0    y14    ib+z14    0    y15    ib    Rbow
GW    18    7    0    y14    ib-z14    0    y15    ib    Rbow
GW    19    3    0    y14    ib+z14    0    y15    ib+z15    Rbow
GW    20    3    0    y14    ib-z14    0    y15    ib-z15    Rbow
GW    21    9    0    y15    ib    0    y15    ib+z15    Rbow
GW    22    9    0    y15    ib    0    y15    ib-z15    Rbow
GW    23    3    0    y14    ib    0    y15    ib    Rbow
GW    24    5    0    y15    ib    0    y16    ib+z13    Rbow
GW    25    5    0    y15    ib    0    y16    ib-z13    Rbow
GW    26    5    0    y15    ib+z15    0    y16    ib+z13    Rbow
GW    27    5    0    y15    ib-z15    0    y16    ib-z13    Rbow
GW    28    3    0    y15    ib+z15    0    y16    ib+z16    Rbow
GW    29    3    0    y15    ib-z15    0    y16    ib-z16    Rbow
GW    30    3    0    y15    ib    0    y16    ib    Rbow
GW    31    5    0    y16    ib+z13    0    y16    ib+z16    Rbow
GW    32    5    0    y16    ib-z13    0    y16    ib-z16    Rbow
GW    33    5    0    y16    ib    0    y16    ib+z13    Rbow
GW    34    5    0    y16    ib    0    y16    ib-z13    Rbow
GW    35    5    0    y16    ib    0    y17    ib+z13    Rbow
GW    36    5    0    y16    ib    0    y17    ib-z13    Rbow
GW    37    5    0    y16    ib+z16    0    y17    ib+z13    Rbow
GW    38    5    0    y16    ib-z16    0    y17    ib-z13    Rbow
GW    39    3    0    y16    ib+z16    0    y17    ib+z17    Rbow
GW    40    3    0    y16    ib-z16    0    y17    ib-z17    Rbow
GW    41    3    0    y16    ib    0    y17    ib    Rbow
GW    42    3    0    y16    ib+z13    0    y17    ib+z13    Rbow
GW    43    3    0    y16    ib-z13    0    y17    ib-z13    Rbow
GW    44    7    0    y17    ib+z13    0    y17    ib+z17    Rbow
GW    45    7    0    y17    ib-z13    0    y17    ib-z17    Rbow
GW    46    5    0    y17    ib    0    y17    ib+z13    Rbow
GW    47    5    0    y17    ib    0    y17    ib-z13    Rbow
GW    48    5    0    y17    ib+z13    0    y18    ib    Rbow
GW    49    5    0    y17    ib-z13    0    y18    ib    Rbow
GW    50    5    0    y17    ib+z17    0    y18    ib+z14    Rbow
GW    51    5    0    y17    ib-z17    0    y18    ib-z14    Rbow
GW    52    3    0    y17    ib+z17    0    y18    ib+z18    Rbow
GW    53    3    0    y17    ib-z17    0    y18    ib-z18    Rbow
GW    54    3    0    y17    ib    0    y18    ib    Rbow
GW    55    3    0    y17    ib+z13    0    y18    ib+z14    Rbow
GW    56    3    0    y17    ib-z13    0    y18    ib-z14    Rbow
GW    57    7    0    y18    ib+z14    0    y18    ib+z18    Rbow
GW    58    7    0    y18    ib-z14    0    y18    ib-z18    Rbow
GW    59    7    0    y18    ib    0    y18    ib+z14    Rbow
GW    60    7    0    y18    ib    0    y18    ib-z14    Rbow
GW    61    7    0    y18    ib    0    y19    ib+z14    Rbow
GW    62    7    0    y18    ib    0    y19    ib-z14    Rbow
GW    63    7    0    y18    ib+z18    0    y19    ib+z14    Rbow
GW    64    7    0    y18    ib-z18    0    y19    ib-z14    Rbow
GW    65    3    0    y18    ib+z18    0    y19    ib+z19    Rbow
GW    66    3    0    y18    ib-z18    0    y19    ib-z19    Rbow
GW    67    3    0    y18    ib    0    y19    ib    Rbow
GW    68    3    0    y18    ib+z14    0    y19    ib+z14    Rbow
GW    69    3    0    y18    ib-z14    0    y19    ib-z14    Rbow
GW    70    3    0    y19    ib+z14    0    y19    ib+z16    Rbow
GW    71    5    0    y19    ib+z16    0    y19    ib+z19    Rbow
GW    72    3    0    y19    ib+z16    0    yend+bowtip2    ib+z16    Rbow
GW    73    3    0    y19    ib-z14    0    y19    ib-z16    Rbow
GW    74    5    0    y19    ib-z16    0    y19    ib-z19    Rbow
GW    75    7    0    y19    ib    0    y19    ib+z14    Rbow
GW    76    7    0    y19    ib    0    y19    ib-z14    Rbow
GW    77    7    0    y19    ib+z14    0    yend+bowtip2    ib    Rbow
GW    78    7    0    y19    ib-z14    0    yend+bowtip2    ib    Rbow
GW    79    5    0    y19    ib+z14    0    yend+bowtip2    ib+z16    Rbow
GW    80    5    0    y19    ib-z14    0    yend+bowtip2    ib-z16    Rbow
GW    81    3    0    y19    ib-z16    0    yend+bowtip2    ib-z16    Rbow
GW    82    7    0    y19    ib+z19    0    yend+bowtip2    ib+z16    Rbow
GW    83    7    0    y19    ib-z19    0    yend+bowtip2    ib-z16    Rbow
GW    84    3    0    y19    ib+z19    0    yend    ib+z20    Rbow
GW    85    3    0    y19    ib-z19    0    yend    ib-z20    Rbow
GW    86    3    0    y19    ib    0    yend+bowtip2    ib    Rbow
GW    87    5    0    yend+bowtip2    ib    0    yend+bowtip2    ib+z13    Rbow
GW    88    3    0    y19    ib+z14    0    yend+bowtip2    ib+z13    Rbow
GW    89    5    0    yend+bowtip2    ib+z13    0    yend+bowtip2    ib+z16    Rbow
GW    90    5    0    yend+bowtip2    ib    0    yend+bowtip2    ib-z13    Rbow
GW    91    5    0    yend+bowtip2    ib-z13    0    yend+bowtip2    ib-z16    Rbow
GW    92    3    0    yend+bowtip2    ib-z13    0    y19    ib-z14    Rbow
GW    93    7    0    yend+bowtip2    ib+z16    0    yend    ib+z20    Rbow
GW    94    7    0    yend+bowtip2    ib-z16    0    yend    ib-z20    Rbow
GW    95    5    0    yend+bowtip2    ib    0    y22    ib    Rbow
GW    96    5    0    y22    ib    0    yend+bowtip9    ib+z13    Rbow
GW    97    5    0    yend+bowtip9    ib+z13    0    yend+bowtip7    ib+z16    Rbow
GW    98    7    0    yend+bowtip7    ib+z16    0    yend    ib+z20    Rbow
GW    99    3    0    yend+bowtip7    ib+z16    0    yend+bowtip2    ib+z16    Rbow
GW    100    7    0    yend+bowtip2    ib    0    yend+bowtip9    ib+z13    Rbow
GW    101    5    0    yend+bowtip2    ib+z13    0    yend+bowtip9    ib+z13    Rbow
GW    102    7    0    yend+bowtip9    ib+z13    0    yend+bowtip2    ib+z16    Rbow
GW    103    5    0    y22    ib    0    yend+bowtip9    ib-z13    Rbow
GW    104    5    0    yend+bowtip9    ib-z13    0    yend+bowtip7    ib-z16    Rbow
GW    105    7    0    yend+bowtip7    ib-z16    0    yend    ib-z20    Rbow
GW    106    3    0    yend+bowtip7    ib-z16    0    yend+bowtip2    ib-z16    Rbow
GW    107    7    0    yend+bowtip2    ib    0    yend+bowtip9    ib-z13    Rbow
GW    108    5    0    yend+bowtip2    ib-z13    0    yend+bowtip9    ib-z13    Rbow
GW    109    7    0    yend+bowtip9    ib-z13    0    yend+bowtip2    ib-z16    Rbow
GX    500    010
GW    999    3    0    feed    0    0    -feed    0    Rsrc
GS    0    0    0.0254
GE    0
LD    5    0    0    0    Cond    'Conductivity
GN    -1
EK
EX    0    999    2    0    1    0    0    'GW1 is SOURCE wire
FR    0    48    0    0    470    3
RP    0    1    73    1510    90    0    1    5    0    0
EN
Have fun building Antennas!


·
Registered
Joined
·
133 Posts
Took your rounded bow tie model and fixed the Rbow radius.
You can improve the SWR and impedance curve by increasing the radius of Rbow, the radius/thickness of the bowtie material, but is it practical. I don't think anyone would build an antenna, that uses 1/8" thick metal plate, for the solid bowties. The combination of wind load and weight would make the antenna impractical. Is there a reason that you feel that this larger radius better simulates/models bowties made of sheetmetal?


·
Registered
Joined
·
119 Posts
Discussion Starter #19 (Edited)
Abraham Rubinstein & Farhad Rachidi & Maracos Rubinstein said:
"equal area rule" (EAR)...known as the "same surface
area"..states that the surface of wires...is made equal
to the surface area of the solid surface area...being
modeled."

On WireGrid Representation of Solid Metallic Surfaces by Abraham Rubinstein
It's better because of the equal area rule.

Don't believe the radius represents the thickness of the rounded
sheet metal bow tie.

If you don't like rounded sheet metal bow ties, you can always use multi-whisker
bow ties to get about the same results.

Knowing that rounded sheet metal bow ties have a lower swr, used the
optimizer to find the proper radius for this.

Also created a freebasic program to find rbow for a bow tie.

For those who don't want to bother with compiling this code, here is the executable.

GetRbow.exe

Syntax = GetRbow Filename BowLen BowSep

FileName must have been created by geometry edit

Here is the code:

Code:
#LANG "fblite"
#include "string.bi"

DECLARE Function Remain$( ByRef nStart%, ByRef sMainString$, ByRef sMatchPattern$)
DECLARE Function Extract$(nStart%, sMainString$, sMatchPattern$)
DECLARE SUB PARSE(BYVAL ParseString$,Array$(),MatchString$,ParseCount%)
DECLARE SUB Incr(A%)
DECLARE SUB Replace(MainString$ , MatchPattern$, ReplaceWith$)

DIM WireCordinates$(1 TO 8)

Pi! = 3.14159

Cmd$ = COMMAND$

IF Cmd$ = "?" OR Cmd$ = "-h" THEN
        PRINT "GetRbow Filename BowLen BowSep"
        PRINT "FileName must have been created by geometry edit"
        SLEEP
        END
END IF

InputFile$ = COMMAND$(1)
BowLen! = VAL(COMMAND$(2))
BowSep! = VAL(COMMAND$(3))

SinA! = (BowSep!/2)/BowLen!
Radians! = ASIN(SinA!)
Degrees! = (Radians! * 180)/Pi!
FlareAngle! = 2 * Degrees!

InputFile$ = "solid-botie-ljhavener-numbers.nec"    ' COMMAND$
OPEN InputFile$ FOR INPUT AS #1

DO
    LINE INPUT #1,ThisLine$
    IF LEFT$(ThisLine$,2) = "GW" THEN
        ThisLine$ = TRIM$(REMAIN$(1,ThisLine$, CHR$(9)))

        WireNum$ = TRIM$(EXTRACT$(1,ThisLine$, CHR$(9)))
        IF WireNum$ <> "1" THEN
            PARSE ThisLine$, WireCordinates$(), CHR$(9),8
            Y1! = VAL(WireCordinates$(4))
            Y2! = VAL(WireCordinates$(7))
            Z1! = VAL(WireCordinates$(5))
            Z2! = VAL(WireCordinates$(8))
            TotalLen! = TotalLen! + SQR((Y2!-Y1!)^2+(Z2!-Z1!)^2)
        END IF
    END IF
LOOP UNTIL EOF(1)

Rbow! = ((FlareAngle!/360) * BowLen!^2)/(2 * TotalLen!)

PRINT FORMAT(Rbow! , "##.###")
SLEEP
END

SUB Incr(A%)
A% = A% + 1
END SUB

SUB PARSE(BYVAL ParseString$,Array$(),MatchString$,ParseCount%)

FOR I% = 1 TO ParseCount%
    Array$(I%) = Extract$(1, ParseString$, MatchString$)
    ParseString$ = Remain$( 1, ParseString$, MatchString$)
NEXT I%
END SUB


Function Remain$( nStart%, sMainString$, sMatchPattern$)

    nLenMain% = Len(sMainString$)

    If (nStart% = 0) Or (nStart% > nLenMain%) Then Return ""
    If nStart% < 0 Then nStart% = nLenMain% + nStart% + 1

    i% = Instr(nStart%, sMainString$, sMatchPattern$)
    If i% Then
       Function = Mid$(sMainString$,i%+Len(sMatchPattern$))
    Else
       Function = ""
    End If
End Function

Function Extract$(nStart%, sMainString$, sMatchPattern$)

    nLenMain% = Len(sMainString$)

    if (nStart% = 0) Or (nStart% > nLenMain%) Then Return ""
    If nStart% < 0 Then nStart% = nLenMain% + nStart% + 1

    i% = Instr(nStart%, sMainString$, sMatchPattern$)
    If i% Then
       Function = Mid$(sMainString$, nStart%, i%-nStart% )
    Else
       Function = Mid$(sMainString$, nStart%)
    End If
End Function

This program says rbow should be .028

Including nec code using rbow of .028

Also fixed the feed seperation.

The results in swr & impedence is not very different from the
the optimizer rbow radius.

But doing surface modeling is unpredictable.

So the optimizer probably got the best rbow radius.

Here is the Nec code using rbow radius gotten from the
getRbow program.

Nec code:

Code:
CM Simple 2 bay dipole with solid bowties with radiused end
CM Simple SOURCE Wire.
CM AutoSeg(19)
CE
SY Rsrc=0.043   'Optimizer SOURCE wire Radius.
SY Rbow=0.028    'Radius (in inches) of BOWTIE elements
'SY Rbow=0.0639    'Radius (in inches) of BOWTIE elements
SY RACT=.051
SY Rfeed=0.0625    'FEEDLINE wire Radius
SY Rstub=(Rfeed+Rbow)/2    'Feed Stub to transition to bowtie
SY FedSep=1.5    'Separation (in inches) between two FEEDLINE wires
SY BowSep=12.0    'Bow Tine Separation     6.25
SY bzs=BowSep/20    'Bow Tine Separation segments
SY BowLen2=11.0    'Bow Length     11.0     10.25 to match lassars design
SY BowLen=(((BowLen2*Bowlen2))-((10*bzs)*(10*bzs)))^0.5    'BowLen Y of tips
SY bys=BowLen/10    'Bow Length Segment
SY feed=FedSep/2
SY Cond=1.67e7    'Conductivity (Copper=3.0e7, Alum=2.0e7, StainlessSteel=1.67e7)
SY ib=0    'No offset, single bowtie
SY y11=feed+(0.5*bys)
SY y12=feed+(2*bys)
SY y13=feed+(3*bys)
SY y14=feed+(4*bys)
SY y15=feed+(5*bys)
SY y16=feed+(6*bys)
SY y17=feed+(7*bys)
SY y18=feed+(8*bys)
SY y19=feed+(9*bys)
SY yend=feed+BowLen
SY y22=feed+BowLen2
SY bowtip=(BowLen2-Bowlen)/10
SY bowtip2=bowtip*2
SY bowtip4=bowtip*4
SY bowtip7=bowtip*7
SY bowtip9=bowtip*9.5
SY y20=Yend
SY y21=Yend
SY z11=1*bzs
SY z12=2*bzs
SY z13=3*bzs
SY z14=4*bzs
SY z15=5*bzs
SY z16=6*bzs
SY z17=7*bzs
SY z18=8*bzs
SY z19=9*bzs
SY z20=10*bzs
GW    1    1    0    feed    ib    0    y11    ib    Rstub
GW    2    5    0    y11    ib    0    y12    ib+z12    Rbow
GW    3    5    0    y11    ib    0    y12    ib-z12    Rbow
GW    4    7    0    y12    ib+z12    0    y12    ib-z12    Rbow
GW    5    5    0    y12    ib+z12    0    y13    ib    Rbow
GW    6    5    0    y12    ib-z12    0    y13    ib    Rbow
GW    7    3    0    y12    ib+z12    0    y13    ib+z13    Rbow
GW    8    3    0    y12    ib-z12    0    y13    ib-z13    Rbow
GW    9    5    0    y13    ib    0    y13    ib+z13    Rbow
GW    10    5    0    y13    ib    0    y13    ib-z13    Rbow
GW    11    5    0    y13    ib+z13    0    y14    ib    Rbow
GW    12    5    0    y13    ib-z13    0    y14    ib    Rbow
GW    13    3    0    y13    ib+z13    0    y14    ib+z14    Rbow
GW    14    3    0    y13    ib-z13    0    y14    ib-z14    Rbow
GW    15    7    0    y14    ib    0    y14    ib+z14    Rbow
GW    16    7    0    y14    ib    0    y14    ib-z14    Rbow
GW    17    7    0    y14    ib+z14    0    y15    ib    Rbow
GW    18    7    0    y14    ib-z14    0    y15    ib    Rbow
GW    19    3    0    y14    ib+z14    0    y15    ib+z15    Rbow
GW    20    3    0    y14    ib-z14    0    y15    ib-z15    Rbow
GW    21    9    0    y15    ib    0    y15    ib+z15    Rbow
GW    22    9    0    y15    ib    0    y15    ib-z15    Rbow
GW    23    3    0    y14    ib    0    y15    ib    Rbow
GW    24    5    0    y15    ib    0    y16    ib+z13    Rbow
GW    25    5    0    y15    ib    0    y16    ib-z13    Rbow
GW    26    5    0    y15    ib+z15    0    y16    ib+z13    Rbow
GW    27    5    0    y15    ib-z15    0    y16    ib-z13    Rbow
GW    28    3    0    y15    ib+z15    0    y16    ib+z16    Rbow
GW    29    3    0    y15    ib-z15    0    y16    ib-z16    Rbow
GW    30    3    0    y15    ib    0    y16    ib    Rbow
GW    31    5    0    y16    ib+z13    0    y16    ib+z16    Rbow
GW    32    5    0    y16    ib-z13    0    y16    ib-z16    Rbow
GW    33    5    0    y16    ib    0    y16    ib+z13    Rbow
GW    34    5    0    y16    ib    0    y16    ib-z13    Rbow
GW    35    5    0    y16    ib    0    y17    ib+z13    Rbow
GW    36    5    0    y16    ib    0    y17    ib-z13    Rbow
GW    37    5    0    y16    ib+z16    0    y17    ib+z13    Rbow
GW    38    5    0    y16    ib-z16    0    y17    ib-z13    Rbow
GW    39    3    0    y16    ib+z16    0    y17    ib+z17    Rbow
GW    40    3    0    y16    ib-z16    0    y17    ib-z17    Rbow
GW    41    3    0    y16    ib    0    y17    ib    Rbow
GW    42    3    0    y16    ib+z13    0    y17    ib+z13    Rbow
GW    43    3    0    y16    ib-z13    0    y17    ib-z13    Rbow
GW    44    7    0    y17    ib+z13    0    y17    ib+z17    Rbow
GW    45    7    0    y17    ib-z13    0    y17    ib-z17    Rbow
GW    46    5    0    y17    ib    0    y17    ib+z13    Rbow
GW    47    5    0    y17    ib    0    y17    ib-z13    Rbow
GW    48    5    0    y17    ib+z13    0    y18    ib    Rbow
GW    49    5    0    y17    ib-z13    0    y18    ib    Rbow
GW    50    5    0    y17    ib+z17    0    y18    ib+z14    Rbow
GW    51    5    0    y17    ib-z17    0    y18    ib-z14    Rbow
GW    52    3    0    y17    ib+z17    0    y18    ib+z18    Rbow
GW    53    3    0    y17    ib-z17    0    y18    ib-z18    Rbow
GW    54    3    0    y17    ib    0    y18    ib    Rbow
GW    55    3    0    y17    ib+z13    0    y18    ib+z14    Rbow
GW    56    3    0    y17    ib-z13    0    y18    ib-z14    Rbow
GW    57    7    0    y18    ib+z14    0    y18    ib+z18    Rbow
GW    58    7    0    y18    ib-z14    0    y18    ib-z18    Rbow
GW    59    7    0    y18    ib    0    y18    ib+z14    Rbow
GW    60    7    0    y18    ib    0    y18    ib-z14    Rbow
GW    61    7    0    y18    ib    0    y19    ib+z14    Rbow
GW    62    7    0    y18    ib    0    y19    ib-z14    Rbow
GW    63    7    0    y18    ib+z18    0    y19    ib+z14    Rbow
GW    64    7    0    y18    ib-z18    0    y19    ib-z14    Rbow
GW    65    3    0    y18    ib+z18    0    y19    ib+z19    Rbow
GW    66    3    0    y18    ib-z18    0    y19    ib-z19    Rbow
GW    67    3    0    y18    ib    0    y19    ib    Rbow
GW    68    3    0    y18    ib+z14    0    y19    ib+z14    Rbow
GW    69    3    0    y18    ib-z14    0    y19    ib-z14    Rbow
GW    70    3    0    y19    ib+z14    0    y19    ib+z16    Rbow
GW    71    5    0    y19    ib+z16    0    y19    ib+z19    Rbow
GW    72    3    0    y19    ib+z16    0    yend+bowtip2    ib+z16    Rbow
GW    73    3    0    y19    ib-z14    0    y19    ib-z16    Rbow
GW    74    5    0    y19    ib-z16    0    y19    ib-z19    Rbow
GW    75    7    0    y19    ib    0    y19    ib+z14    Rbow
GW    76    7    0    y19    ib    0    y19    ib-z14    Rbow
GW    77    7    0    y19    ib+z14    0    yend+bowtip2    ib    Rbow
GW    78    7    0    y19    ib-z14    0    yend+bowtip2    ib    Rbow
GW    79    5    0    y19    ib+z14    0    yend+bowtip2    ib+z16    Rbow
GW    80    5    0    y19    ib-z14    0    yend+bowtip2    ib-z16    Rbow
GW    81    3    0    y19    ib-z16    0    yend+bowtip2    ib-z16    Rbow
GW    82    7    0    y19    ib+z19    0    yend+bowtip2    ib+z16    Rbow
GW    83    7    0    y19    ib-z19    0    yend+bowtip2    ib-z16    Rbow
GW    84    3    0    y19    ib+z19    0    yend    ib+z20    Rbow
GW    85    3    0    y19    ib-z19    0    yend    ib-z20    Rbow
GW    86    3    0    y19    ib    0    yend+bowtip2    ib    Rbow
GW    87    5    0    yend+bowtip2    ib    0    yend+bowtip2    ib+z13    Rbow
GW    88    3    0    y19    ib+z14    0    yend+bowtip2    ib+z13    Rbow
GW    89    5    0    yend+bowtip2    ib+z13    0    yend+bowtip2    ib+z16    Rbow
GW    90    5    0    yend+bowtip2    ib    0    yend+bowtip2    ib-z13    Rbow
GW    91    5    0    yend+bowtip2    ib-z13    0    yend+bowtip2    ib-z16    Rbow
GW    92    3    0    yend+bowtip2    ib-z13    0    y19    ib-z14    Rbow
GW    93    7    0    yend+bowtip2    ib+z16    0    yend    ib+z20    Rbow
GW    94    7    0    yend+bowtip2    ib-z16    0    yend    ib-z20    Rbow
GW    95    5    0    yend+bowtip2    ib    0    y22    ib    Rbow
GW    96    5    0    y22    ib    0    yend+bowtip9    ib+z13    Rbow
GW    97    5    0    yend+bowtip9    ib+z13    0    yend+bowtip7    ib+z16    Rbow
GW    98    7    0    yend+bowtip7    ib+z16    0    yend    ib+z20    Rbow
GW    99    3    0    yend+bowtip7    ib+z16    0    yend+bowtip2    ib+z16    Rbow
GW    100    7    0    yend+bowtip2    ib    0    yend+bowtip9    ib+z13    Rbow
GW    101    5    0    yend+bowtip2    ib+z13    0    yend+bowtip9    ib+z13    Rbow
GW    102    7    0    yend+bowtip9    ib+z13    0    yend+bowtip2    ib+z16    Rbow
GW    103    5    0    y22    ib    0    yend+bowtip9    ib-z13    Rbow
GW    104    5    0    yend+bowtip9    ib-z13    0    yend+bowtip7    ib-z16    Rbow
GW    105    7    0    yend+bowtip7    ib-z16    0    yend    ib-z20    Rbow
GW    106    3    0    yend+bowtip7    ib-z16    0    yend+bowtip2    ib-z16    Rbow
GW    107    7    0    yend+bowtip2    ib    0    yend+bowtip9    ib-z13    Rbow
GW    108    5    0    yend+bowtip2    ib-z13    0    yend+bowtip9    ib-z13    Rbow
GW    109    7    0    yend+bowtip9    ib-z13    0    yend+bowtip2    ib-z16    Rbow
GX    500    010
GW    999    3    0    feed    0    0    -feed    0    Rsrc
GS    0    0    0.0254
GE    0
LD    5    0    0    0    Cond    'Conductivity
GN    -1
EK
EX    0    999    2    0    1    0    0    'GW1 is SOURCE wire
FR    0    48    0    0    470    3
RP    0    1    73    1510    90    0    1    5    0    0
EN

Have fun building Antennas !


·
Registered
Joined
·
119 Posts
Discussion Starter #20
ljhavener:

How did you developed your version of the rounded bow tie antenna?

Looks like you used some software to developed the wire grid.

What software did you use?

1 - 20 of 21 Posts
Top
