So I've been playing with the NEC optimization scripts found on nikiml's site and decided to make one specifically for the 2020 repack channels found in Hamilton.

Buffalo UHF stations are within 15 degrees of each other with a VHF found at 20*. Toronto comes in at about 65-75* depending on aim. I imagine that not too different for anyone on the mountain. In my particular case one set of Hamilton stations is pretty much LOS for Grand Island and the other is at the cusp of a null at 35*.

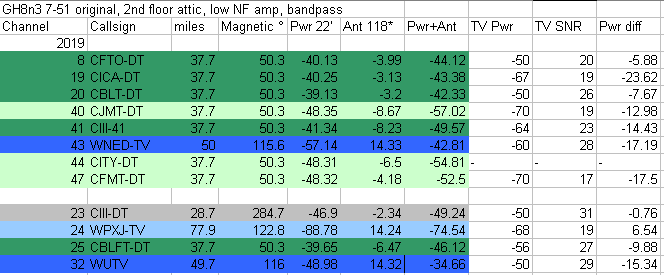

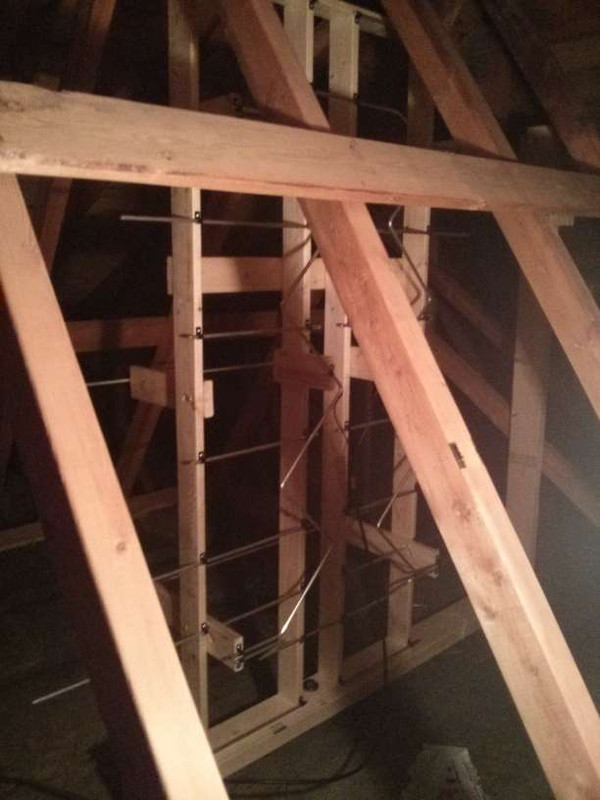

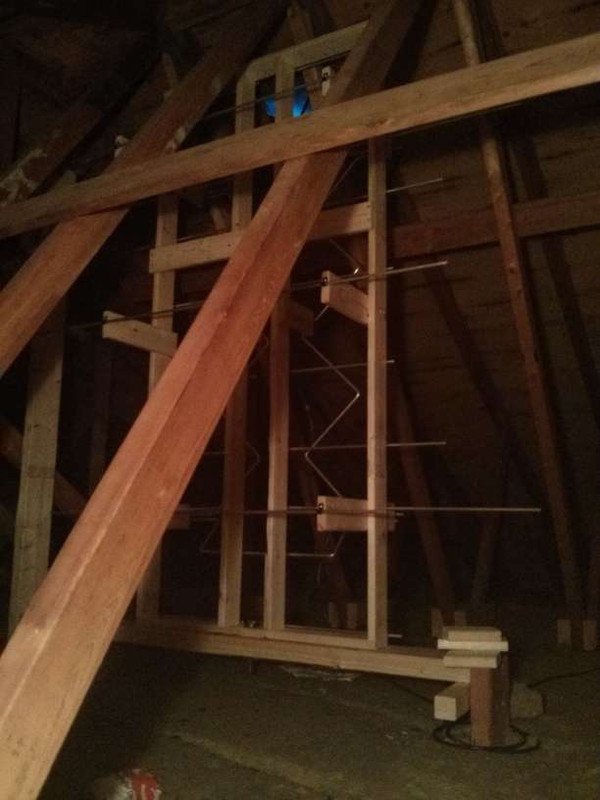

I built a 7-51 GH8n3 from niks site earlier in the year given it looked to have the best side lobes for Toronto.

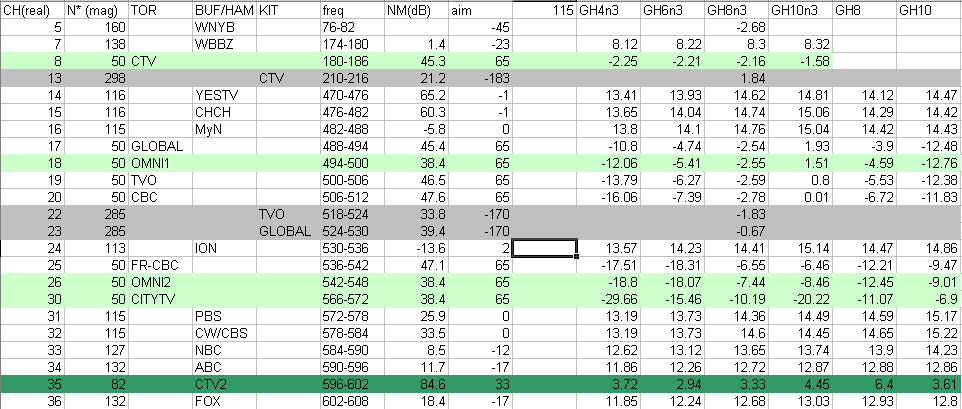

The three low power stations OMNI1,OMNI2,CITY are not reliable at their current freqs (RF40,44,47), not even there half the time. Which seems if funny since WPXJ which has 20db less power on paper but has the benefit of being 5* off center of the main lobe comes in pretty well, except for some issues during the morning sun passing in front and some random fading.


I did a quick 24h optimize for 174-216/470-608 but the side lobe appears to have disappeared. So that's when I decided to try for a Hamilton specific build. Plan is to do one for outside, but it'll cost a bit of height compared to attic install (22 feet to 15 feet AGL). Based on google maps the east wall looks to aim a few degrees south of CHCH/Grand Island for a Toronto lobe of 68*. Early results looked promising, so I decided to try one on the other PC for a better Buffalo aim at WPXJ (Toronto 73*) and see what happens.

Code:
CMD--OPT -s(174,6,8) --swr-target=2.7 -s(470,6,24) --swr-target=2
CMD--OPT -F .5*ave_gain_diff+.5*max_gain_diff --num-cores=3 -a15 --de-np=100 -f "{177:(15,10),183:(73,-3),485:(7,15),491:(73,-2),497:(73,-2),503:(73,-2),509:(73,-2),533:(0,14.5),545:(73,-5),569:(73,-3),587:(5,14),593:(10,13),599:(40,-5),605:(9,13)}" -r restart.log

same for other build just changed target by 5 degrees

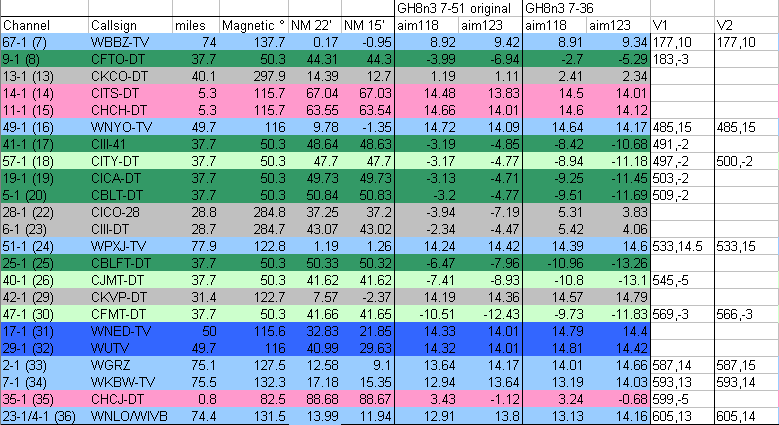

Currently I have the V1 build going for both aimpoints. Side lobes for RF17-20 26,30 are all doing ok compared to baseline but there is a couple of things ive noticed from the V1aim118 model.

The gain peaks at 31,32 and starts to fade a bit by the time it gets to 34,36. I dont know if its because I set a target for 35 so its trying to optimize for a higher gain on that channels despite setting target for -5. I'm thinking for V2 I should ditch any requirement for 35 and maybe shift 30 off the mid to its starting frequency to give more space for gain at 33,34,36. Also having a specific target for each channel in the 17-20 block may be giving it a height weight for Toronto in the optimization calculation.

RF16 is hovering around 1.5db less than baseline. I'm assuming this is because of my ask for 17-20. If I didnt have to worry about 16, I wouldn't care if 17-20 got even higher at the expense of 14,15 since those are super strong regardless. So for V2 I think I'll narrow down the request to the midpoint of the four channels and see if it gives back some of the sidelobe to help out 16. I dont even know if its worth the effort given its adjacent, same bearing, and big power difference compared to 14,15.

RF7 is also lower by 0.7db from baseline. A bit disappointing since it ends up dropping the upper VHF down to 6db gain but not getting a better result on RF7.


·
Registered
Joined
·
12 Posts
Discussion Starter #2
Since they take a longtime, I stopped the optimization at around 350 iterations to get a feel for how its progressing. Once I narrow it down to a few good ones, I'll let them finish to see where it ends up. Starting model is gh8n3_9V53_14u7.nec.

V0 - only the 6 weakest Buffalo's targeted [no lobes for Toronto]
Code:
CMD--OPT -s(174,6,8) --swr-target=2.7 -s(470,6,24) --swr-target=2
CMD--OPT -F .5*ave_gain_diff+.5*max_gain_diff --num-cores=3 -a15 --de-np=50 -f "{177:(20,11),485:(2,16),533:(5,16),587:(10,16),593:(14,15),605:(14,15)}" -r restart.log
V1 - 6 weak Buffalo, all 7 Toronto sidelobe, local CH35 at negative target [have to cherry pick best.nec, opt script seems to want to improve avg gain at the expense of CH34,36, also will remove CH35 negative target, I think it may trying to improve the gain]
Code:
CMD--OPT -s(174,6,8) --swr-target=2.7 -s(470,6,24) --swr-target=2
CMD--OPT -F .5*ave_gain_diff+.5*max_gain_diff --num-cores=3 -a15 --de-np=50 -f "{183:(68,-3),177:(20,10),485:(2,15),491:(68,-2),497:(68,-2),503:(68,-2),509:(68,-2),533:(5,14.5),545:(68,-5),569:(68,-3),587:(10,14),593:(14,13),599:(35,-5),605:(14,13)}" -r restart.log
v1 - same above, except 5* more toward Buffalo [just to see how it reacts when asking for a bigger spread between sidelobe and mainlobe, better off with original V1opt and just aim it more south]
Code:
CMD--OPT -s(174,6,8) --swr-target=2.7 -s(470,6,24) --swr-target=2
CMD--OPT -F .5*ave_gain_diff+.5*max_gain_diff --num-cores=3 -a15 --de-np=100 -f "{177:(15,10),183:(73,-3),485:(7,15),491:(73,-2),497:(73,-2),503:(73,-2),509:(73,-2),533:(0,14.5),545:(73,-5),569:(73,-3),587:(5,14),593:(10,13),599:(40,-5),605:(9,13)}" -r restart.log
V2 - 6 weak Buffalo (CH7 started at 174 instead of 177), one Toronto at the midpoint of 17-20, one at 569 [Toronto 17-20 took a hit with only one target, CH24 lost some gain even though less competing targets near it]
Code:
CMD--OPT -s(174,6,8) --swr-target=2.7 -s(470,6,24) --swr-target=2
CMD--OPT -F .5*ave_gain_diff+.5*max_gain_diff --num-cores=3 -a15 --de-np=50 -f "{174:(20,10),485:(2,15),500:(68,-2),533:(5,15),566:(68,-2),587:(10,15),593:(14,14),605:(14,14)}" -r restart.log
V3 - 6 weak Buffalo (CH7 started at 174 instead of 177), two Toronto at the midpoint of 17-20, one at 569, CH8 side target added back [17-20 back to positive gain about where I'd like it, Ch24 unchanged, CH35 have a little null, small decrease on 34,36]
Code:
CMD--OPT -s(174,6,8) --swr-target=2.7 -s(470,6,24) --swr-target=2
CMD--OPT -F .5*ave_gain_diff+.5*max_gain_diff --num-cores=3 -a15 --de-np=50 -f "{174:(20,10),183:(68,-3),485:(2,15),500:(68,-2),506:(68,-2),533:(5,15),566:(68,-2),587:(10,15),593:(14,14),605:(14,14)}" -r restart.log
V4- same as V3, noticed that L3 variable maxes out at .65, changed to .7 [all prior opts change height from original 52" to 57", this change shortens height by 2" to 55" at the cost of 2" wider either side. Pretty good result, upper Buffalo 33-36 are about as good as I've gotten so far, same with Toronto 30, 17-20 dips a bit by RF20, but 20 is rock solid right now with 3db less gain so that is just me being picky. RF16 is also doing ok, with a nice dip little dip going back to 15,14. Probably wont help with getting 16 but hey I'll take it. 7 and 8 also doing as good as before. Only real annoyance is the massive loss on 13. Its mostly a repeat of content on 9, but there is local news for a little variety outside of Toronto.]
Code:
CMD--OPT -s(174,6,8) --swr-target=2.7 -s(470,6,24) --swr-target=2
CMD--OPT -F .5*ave_gain_diff+.5*max_gain_diff --num-cores=3 -a15 --de-np=50 -f "{174:(20,10),183:(68,-3),485:(2,15),500:(68,-2),506:(68,-2),533:(5,15),566:(68,-2),587:(10,15),593:(14,14),605:(14,14)}" -r restart.log


Next I'll add a target for 13 see if I can get it back to around 0 gain from rear without worsening anything. Beyond that I dont think I want to lengthen L3 anymore as it already runs 15" past its support if I do a similar style build as in the attic. Maybe try a different -F target?


·
Registered
Joined
·
12 Posts
Discussion Starter #3
With the repack upon us, here's my results. First one only considers Buffalo targets, the next two try for Toronto side lobes, with a little trade-off on Buffalo. These necs are not the final optimizations, but are cherry picked for their null on 35.




===========================================================================================================
===========================================================================================================
===========================================================================================================
V0best1_427.nec
Code:
V0best1_427.nec              - - - - - - Gain - - - - - -       -- Impedance --
   Freq  Angle   Goal   Diff    Raw    Net   SWR    Real    Imag  AGT  corr
============================================================================
  177.0   20.0  10.00   0.47   9.54   9.53  1.08  278.14   -3.35 1.02  0.10
  183.0   68.0  -2.00   0.20  -2.18  -2.20  1.14  339.37  -11.75 1.02  0.10
  213.0  180.0  -2.00  -4.42   2.95   2.42  2.03  360.86 -229.88 1.02  0.10
  473.0    2.0   0.00 -13.67  14.21  13.67  2.04  179.60  118.14 1.02  0.09
  479.0    2.0   0.00 -14.32  14.75  14.32  1.88  196.11  116.40 1.02  0.09
  485.0    2.0  15.00   0.31  15.08  14.69  1.82  206.60  118.92 1.02  0.09
  491.0   68.0  -2.00   4.10  -5.74  -6.10  1.78  218.30  125.80 1.02  0.09
  497.0   68.0  -2.00   4.92  -6.59  -6.92  1.74  233.71  133.24 1.02  0.09
  503.0   68.0  -2.00   5.48  -7.18  -7.48  1.69  252.36  138.75 1.02  0.09
  509.0   68.0  -2.00   5.74  -7.47  -7.74  1.64  273.58  141.16 1.02  0.09
  521.0  167.0   0.00  -2.95   3.15   2.95  1.53  320.87  130.81 1.02  0.09
  527.0  167.0   0.00  -3.23   3.39   3.23  1.46  342.25  115.56 1.02  0.09
  533.0    5.0  15.00   0.40  14.73  14.60  1.40  358.14   95.43 1.02  0.09
  539.0   68.0  -2.00   6.71  -8.62  -8.71  1.35  368.22   73.14 1.02  0.11
  545.0   68.0  -2.00   7.35  -9.28  -9.35  1.30  373.08   49.84 1.02  0.11
  563.0    5.0   0.00 -14.84  14.87  14.84  1.19  354.05  -16.88 1.02  0.11
  569.0   68.0  -2.00   6.12  -8.10  -8.12  1.17  337.47  -33.23 1.02  0.11
  575.0    2.0   0.00 -15.32  15.34  15.32  1.17  317.26  -44.68 1.02  0.11
  581.0    2.0   0.00 -15.41  15.44  15.41  1.19  294.82  -50.31 1.02  0.11
  587.0   10.0  15.00   0.39  14.65  14.61  1.22  271.95  -49.75 1.02  0.11
  593.0   14.0  14.00   0.28  13.78  13.72  1.27  250.41  -43.46 1.02  0.11
  599.0   35.0 -10.00 -12.13   2.22   2.13  1.33  231.44  -32.43 1.02  0.11
  605.0   14.0  14.00   0.46  13.66  13.54  1.40  215.69  -17.79 1.02  0.11
,
Code:
CM GH8n3 optimized for 7-13/14-36 Hamilton (V0best1_427.nec)
CM source nec: nikiml's non-modular GH8n3
CM UHF net gain xx.xdbi VHF-hi net gain x.xx
CM covered by GPL v3 or later (http://www.gnu.org/licenses/gpl.txt)
CM see http://www.digitalhome.ca/forum/showpost.php?p=907404&postcount=2
CM
CMD--OPT -s(174,6,8) --swr-target=2.7 -s(470,6,24) --swr-target=2
CMD--OPT --target-function ".8*max_gain_diff+.2*max_ml" -f "{174:(20,11),183:(68,-2),216:(180,-2),485:(2,15),500:(68,2),506:(68,2),533:(5,15),566:(68,1),587:(10,15),593:(14,14),605:(14,14)}"
CMD--OPT --num-cores=3 -a15 --de-np=50 -r restart.log
CM
CM Buffalo UHF 0-15 degrees, VHF 20 degrees, Toronto UHF/VHF 68 degrees
CM Buffalo UHF 0-10 degrees, VHF 15 degrees, Toronto UHF/VHF 73 degrees
CM 7-36 sweep
CMD--EVAL --num-cores=3 -a15 -f "{177:(20,10),183:(68,-2),213:(180,-2),473:(2,0),479:(2,0),485:(2,15),491:(68,-2),497:(68,-2),503:(68,-2),509:(68,-2),521:(167,0),527:(167,0),533:(5,15),539:(68,-2),545:(68,-2),563:(5,0),569:(68,-2),575:(2,0),581:(2,0),587:(10,15),593:(14,14),599:(35,-10),605:(14,14)}"
'CMD--EVAL --num-cores=3 -a15 -f "{177:(15,10),183:(73,-2),213:(175,-2),473:(7,0),479:(7,0),485:(7,15),491:(73,-2),497:(73,-2),503:(73,-2),509:(73,-2),521:(162,0),527:(162,0),533:(0,15),539:(73,-2),545:(73,-2),563:(0,0),569:(73,-2),575:(7,0),581:(7,0),587:(5,15),593:(10,14),599:(40,-10),605:(9,14)}"
CMD--EVAL --num-cores=3 -a15 -s(174,6,8) -s(470,6,24)
CE

SY radius=0.003175
SY narod_surf_spacing=0.006
SY narod_spacing=0.012

SY feed=0.0357708' 0.01, 0.1

SY b=0.0996946' 0.075, 0.25
SY a1=0.1983791' 0.07, 0.22
SY _G3=0.0810035' 0.006, 0.1
SY a2=a1+feed-_G3'this is to avoid self intersection since _G3 is to be > radius+2.5mm
SY a3=0.1478288' 0.07, 0.22



SY x=-0.0739491' -0.12, -0.05
SY g1=0.0150347' 0.002, 0.045
SY g2=0.0440491' 0.002, 0.045
SY g3=0.0166639' 0.002, 0.045
SY g4=0.0338225' 0.002, 0.045
SY l1=0.4010778' 0.1, 0.6
SY l2=0.2896436' 0.1, 0.6
SY l3=0.5415826' 0.5, 0.65
SY l4=0.2654564' 0.1, 0.65

SY n_h=0.0893332' -0.01, 0.14
SY n_f_dx=0
SY n_top_dy=-0.03669' -0.04, 0.04
SY n_b_taper=0.0026862' -0.001, 0.04
SY n_top=_G3+a3+n_top_dy- n_b_taper/2'hat head size
SY n_f=x + n_f_dx'so the hat does not tilt behind the reflectors


SY narod_top = a1+a2+a3+narod_spacing+n_h'want to put 3 reflectors between z=very_small and z=narod_top +/- very_small,  1 reflectors around narod_top and 1 above it
SY dz3=0.1447504' 0.017, 0.18
SY above_below=-1
SY sign = abs(above_below)/above_below' may fail at 0

SY z3 = sign*dz3+narod_top
SY dz = z3/5

SY dz1=1.31912' 0.2, 2
SY z1 = (1+(dz1-1))*dz
SY dz2=1.166731' 0.2, 2
SY z2 = (3+(dz2-1))*dz


SY dz4=0.2783569' 0.05, 0.3
SY z4=z3+dz4

SY ay1=feed+a1
SY ay2=feed+a1-a2
SY ay3=feed+a1-a2+a3
SY ay4=feed+a1-a2+a3+b
SY az2=a1+a2
SY az3=a1+a2+a3
SY n_b_z=az3+narod_spacing
SY n_b_y1=n_top+n_b_taper
SY n_b_y2=n_b_y1+b

SY n_z_coef=0.8675228' 0.5, 1.4
SY n_zsz=0.4067666' 0.3, 0.55
SY n_0sz=0.5134234' 0.3, 0.55
SY n_x_diff=0.2708664' 0.15, 0.4
SY n_x = x-n_x_diff
SY n_z = narod_top*n_z_coef


GW 1 23 0 feed 0 0 ay1 a1 radius'#00f
GW 2 17 0 ay1 a1 0 ay2 az2 radius'#00f
GW 3 17 0 ay2 az2 0 ay3 az3 radius'#00f
GW 4 8 0 ay3 az3 0 ay4 az3 radius'#00f
GW 5 33 x g1 z1 x l1+g1 z1 radius'#0f0
GW 6 23 x g2 z2 x l2+g2 z2 radius'#0f0
GW 7 43 x g3 z3 x l3+g3 z3 radius'#0f0
GW 8 21 x g4 z4 x l4+g4 z4 radius'#0f0
GW 11 9 n_f n_top n_b_z+n_h 0 n_b_y1 n_b_z radius'#000
GW 12 8 0 n_b_y1 n_b_z 0 n_b_y2 n_b_z radius'#000
GX    20    010
GW 13 31 n_f -n_top n_b_z+n_h n_f n_top n_b_z+n_h radius'#000
GW 15 65 n_x -n_zsz n_z n_x n_zsz n_z radius'#D00
GX    40    001
GW 16 83 n_x -n_0sz 0 n_x n_0sz 0 radius'#D00
GW 100 5 0 -feed 0 0 feed 0 radius*.8675'#f40
GE    0
LD    5    0    0    0    24900000
GN    -1
EK
EX 0 100 3 0 1
FR    0    0    0    0    800    0
EN
===========================================================================================================
===========================================================================================================
===========================================================================================================
V7best-0_027.nec
Code:
V7best-0_027.nec              - - - - - - Gain - - - - - -       -- Impedance --
   Freq  Angle   Goal   Diff    Raw    Net   SWR    Real    Imag  AGT  corr
============================================================================
  177.0   20.0  10.00   1.26   8.91   8.74  1.50  447.52  -22.20 1.02  0.08
  183.0   68.0  -2.00  -0.16  -1.72  -1.84  1.39  418.25    4.83 1.02  0.08
  213.0  180.0  -2.00  -7.72   5.74   5.72  1.16  260.40    8.79 1.02  0.08
  473.0    2.0   0.00 -13.49  13.88  13.49  1.84  203.02  117.82 1.02  0.07
  479.0    2.0   0.00 -13.50  13.80  13.50  1.70  233.54  126.21 1.02  0.07
  485.0    2.0  15.00   1.56  13.66  13.44  1.58  267.52  125.99 1.02  0.07
  491.0   68.0  -2.00  -1.71  -0.15  -0.29  1.44  303.16  111.58 1.02  0.07
  497.0   68.0  -2.00  -2.77   0.84   0.77  1.30  328.97   76.97 1.02  0.07
  503.0   68.0  -2.00  -3.45   1.47   1.45  1.14  324.33   33.39 1.02  0.07
  509.0   68.0  -2.00  -3.48   1.48   1.48  1.06  292.93   14.22 1.02  0.07
  521.0  167.0   0.00  -3.75   3.79   3.75  1.22  266.67   45.23 1.02  0.07
  527.0  167.0   0.00  -4.23   4.28   4.23  1.24  278.35   58.33 1.02  0.07
  533.0    5.0  15.00   0.57  14.47  14.43  1.23  295.73   61.41 1.02  0.07
  539.0   68.0  -2.00   0.01  -1.98  -2.01  1.20  312.93   55.02 1.02  0.09
  545.0   68.0  -2.00   0.12  -2.10  -2.12  1.17  326.08   41.28 1.02  0.09
  563.0    5.0   0.00 -15.07  15.08  15.07  1.10  326.21  -14.92 1.02  0.09
  569.0   68.0  -2.00  -1.15  -0.84  -0.85  1.12  314.43  -30.67 1.02  0.09
  575.0    2.0   0.00 -15.43  15.45  15.43  1.15  298.43  -42.74 1.02  0.09
  581.0    2.0   0.00 -15.49  15.53  15.49  1.21  279.19  -50.26 1.02  0.09
  587.0   10.0  15.00   0.44  14.62  14.56  1.27  257.87  -52.48 1.02  0.09
  593.0   14.0  14.00   0.58  13.52  13.42  1.35  235.94  -48.94 1.02  0.09
  599.0   35.0 -10.00  -0.13  -9.73  -9.87  1.44  214.95  -39.72 1.02  0.09
  605.0   14.0  14.00   1.00  13.20  13.00  1.55  196.24  -25.38 1.02  0.09
,
Code:
CM GH8n3 optimized for 7-13/14-36 Hamilton (V7best-0_027.nec)
CM source nec: nikiml's non-modular GH8n3
CM UHF net gain xx.xdbi VHF-hi net gain x.xx
CM covered by GPL v3 or later (http://www.gnu.org/licenses/gpl.txt)
CM see http://www.digitalhome.ca/forum/showpost.php?p=907404&postcount=2
CM
CMD--OPT -s(174,6,8) --swr-target=2.7 -s(470,6,24) --swr-target=2
CMD--OPT --target-function "max(max_swr_diff, .2*ave_max_gain_diff+.8*ave_gain_diff)" -f "{174:(20,10),183:(68,-3),216:(180,-3),485:(2,15),500:(68,-2),506:(68,-2),533:(5,15),566:(68,-2),587:(10,15),593:(14,14),605:(14,14)}"
CMD--OPT --num-cores=3 -a15 --de-np=50 -r restart.log
CM
CM Buffalo UHF 0-15 degrees, VHF 20 degrees, Toronto UHF/VHF 68 degrees
CM Buffalo UHF 0-10 degrees, VHF 15 degrees, Toronto UHF/VHF 73 degrees
CM 7-36 sweep
CMD--EVAL --num-cores=3 -a15 -f "{177:(20,10),183:(68,-2),213:(180,-2),473:(2,0),479:(2,0),485:(2,15),491:(68,-2),497:(68,-2),503:(68,-2),509:(68,-2),521:(167,0),527:(167,0),533:(5,15),539:(68,-2),545:(68,-2),563:(5,0),569:(68,-2),575:(2,0),581:(2,0),587:(10,15),593:(14,14),599:(35,-10),605:(14,14)}"
'CMD--EVAL --num-cores=3 -a15 -f "{177:(15,10),183:(73,-2),213:(175,-2),473:(7,0),479:(7,0),485:(7,15),491:(73,-2),497:(73,-2),503:(73,-2),509:(73,-2),521:(162,0),527:(162,0),533:(0,15),539:(73,-2),545:(73,-2),563:(0,0),569:(73,-2),575:(7,0),581:(7,0),587:(5,15),593:(10,14),599:(40,-10),605:(9,14)}"
CMD--EVAL --num-cores=3 -a15 -s(174,6,8) -s(470,6,24)
CE

SY radius=0.003175
SY narod_surf_spacing=0.006
SY narod_spacing=0.012

SY feed=0.03377516' 0.01, 0.1

SY b=0.08219569' 0.075, 0.25
SY a1=0.1956446' 0.07, 0.22
SY _G3=0.08515904' 0.006, 0.1
SY a2=a1+feed-_G3'this is to avoid self intersection since _G3 is to be > radius+2.5mm
SY a3=0.1740205' 0.07, 0.22



SY x=-0.07040571' -0.12, -0.05
SY g1=0.002584928' 0.002, 0.045
SY g2=0.04145774' 0.002, 0.045
SY g3=0.04076352' 0.002, 0.045
SY g4=0.0377119' 0.002, 0.045
SY l1=0.4227435' 0.1, 0.6
SY l2=0.376337' 0.1, 0.6
SY l3=0.6255204' 0.5, 0.7
SY l4=0.4797607' 0.1, 0.65

SY n_h=0.06876942' -0.01, 0.14
SY n_f_dx=0
SY n_top_dy=0.02035543' -0.04, 0.04
SY n_b_taper=0.004648507' -0.001, 0.04
SY n_top=_G3+a3+n_top_dy- n_b_taper/2'hat head size
SY n_f=x + n_f_dx'so the hat does not tilt behind the reflectors


SY narod_top = a1+a2+a3+narod_spacing+n_h'want to put 3 reflectors between z=very_small and z=narod_top +/- very_small,  1 reflectors around narod_top and 1 above it
SY dz3=0.165752' 0.017, 0.18
SY above_below=-1
SY sign = abs(above_below)/above_below' may fail at 0

SY z3 = sign*dz3+narod_top
SY dz = z3/5

SY dz1=1.308304' 0.2, 2
SY z1 = (1+(dz1-1))*dz
SY dz2=1.215667' 0.2, 2
SY z2 = (3+(dz2-1))*dz


SY dz4=0.2637319' 0.05, 0.3
SY z4=z3+dz4

SY ay1=feed+a1
SY ay2=feed+a1-a2
SY ay3=feed+a1-a2+a3
SY ay4=feed+a1-a2+a3+b
SY az2=a1+a2
SY az3=a1+a2+a3
SY n_b_z=az3+narod_spacing
SY n_b_y1=n_top+n_b_taper
SY n_b_y2=n_b_y1+b

SY n_z_coef=0.8629576' 0.5, 1.4
SY n_zsz=0.4268514' 0.3, 0.55
SY n_0sz=0.4479426' 0.3, 0.55
SY n_x_diff=0.340918' 0.15, 0.4
SY n_x = x-n_x_diff
SY n_z = narod_top*n_z_coef


GW 1 23 0 feed 0 0 ay1 a1 radius'#00f
GW 2 17 0 ay1 a1 0 ay2 az2 radius'#00f
GW 3 19 0 ay2 az2 0 ay3 az3 radius'#00f
GW 4 7 0 ay3 az3 0 ay4 az3 radius'#00f
GW 5 33 x g1 z1 x l1+g1 z1 radius'#0f0
GW 6 31 x g2 z2 x l2+g2 z2 radius'#0f0
GW 7 51 x g3 z3 x l3+g3 z3 radius'#0f0
GW 8 39 x g4 z4 x l4+g4 z4 radius'#0f0
GW 11 8 n_f n_top n_b_z+n_h 0 n_b_y1 n_b_z radius'#000
GW 12 7 0 n_b_y1 n_b_z 0 n_b_y2 n_b_z radius'#000
GX    20    010
GW 13 45 n_f -n_top n_b_z+n_h n_f n_top n_b_z+n_h radius'#000
GW 15 69 n_x -n_zsz n_z n_x n_zsz n_z radius'#D00
GX    40    001
GW 16 71 n_x -n_0sz 0 n_x n_0sz 0 radius'#D00
GW 100 5 0 -feed 0 0 feed 0 radius*.8675'#f40
GE    0
LD    5    0    0    0    24900000
GN    -1
EK
EX 0 100 3 0 1
FR    0    0    0    0    800    0
EN
===========================================================================================================
===========================================================================================================
===========================================================================================================
V12best1_316.nec
Code:
V12best1_316.nec              - - - - - - Gain - - - - - -       -- Impedance --
   Freq  Angle   Goal   Diff    Raw    Net   SWR    Real    Imag  AGT  corr
============================================================================
  177.0   20.0  10.00   0.60   9.59   9.40  1.53  453.30  -39.66 1.03  0.14
  183.0   68.0  -2.00   0.23  -2.09  -2.23  1.45  410.75  -69.88 1.03  0.14
  213.0  180.0  -2.00  -4.74   2.94   2.74  1.54  340.80 -133.22 1.03  0.14
  473.0    2.0   0.00 -13.02  13.59  13.02  2.09  175.61  119.83 1.03  0.15
  479.0    2.0   0.00 -13.32  13.71  13.32  1.83  209.55  125.17 1.03  0.15
  485.0    2.0  15.00   1.58  13.66  13.42  1.60  245.94  117.33 1.03  0.15
  491.0   68.0  -2.00  -1.99   0.11  -0.01  1.40  275.25   92.89 1.03  0.15
  497.0   68.0  -2.00  -2.27   0.32   0.27  1.23  285.99   59.22 1.03  0.15
  503.0   68.0  -2.00  -2.61   0.63   0.61  1.15  276.95   31.88 1.03  0.15
  509.0   68.0  -2.00  -2.85   0.88   0.85  1.18  259.67   20.67 1.03  0.15
  521.0  167.0   0.00  -3.67   3.73   3.67  1.28  241.71   31.98 1.03  0.15
  527.0  167.0   0.00  -4.06   4.13   4.06  1.28  246.32   40.99 1.03  0.15
  533.0    5.0  15.00   0.90  14.15  14.10  1.25  257.95   45.03 1.03  0.15
  539.0   68.0  -2.00  -1.45  -0.52  -0.55  1.19  272.03   41.00 1.04  0.16
  545.0   68.0  -2.00  -1.23  -0.76  -0.77  1.12  283.26   29.26 1.04  0.16
  563.0    5.0   0.00 -14.89  14.90  14.89  1.10  277.90  -17.98 1.04  0.16
  569.0   68.0  -2.00  -1.51  -0.46  -0.49  1.17  266.05  -28.27 1.04  0.16
  575.0    2.0   0.00 -15.13  15.18  15.13  1.24  252.27  -34.19 1.04  0.16
  581.0    2.0   0.00 -15.12  15.20  15.12  1.31  237.97  -36.03 1.04  0.16
  587.0   10.0  15.00   0.92  14.19  14.08  1.38  224.03  -34.29 1.04  0.16
  593.0   14.0  14.00   1.12  13.03  12.88  1.45  211.00  -29.46 1.04  0.16
  599.0   35.0 -10.00  -5.09  -4.72  -4.91  1.52  199.19  -21.92 1.04  0.16
  605.0   14.0  14.00   1.54  12.69  12.46  1.59  188.90  -11.91 1.04  0.16
,
Code:
CM GH8n3 optimized for 7-13/14-36 Hamilton (V12best1_316.nec)
CM source nec: nikiml's non-modular GH8n3
CM UHF net gain xx.xdbi VHF-hi net gain x.xx
CM covered by GPL v3 or later (http://www.gnu.org/licenses/gpl.txt)
CM see http://www.digitalhome.ca/forum/showpost.php?p=907404&postcount=2
CM
CMD--OPT -s(174,6,8) --swr-target=2.7 -s(470,6,24) --swr-target=2
CMD--OPT --target-function ".8*max_gain_diff+.2*max_ml" -f "{174:(20,11),183:(68,-2),216:(180,-2),485:(2,15),500:(68,2),506:(68,2),533:(5,15),566:(68,1),587:(10,15),593:(14,14),605:(14,14)}"
CMD--OPT --num-cores=3 -a15 --de-np=50 -r restart.log
CM
CM Buffalo UHF 0-15 degrees, VHF 20 degrees, Toronto UHF/VHF 68 degrees
CM Buffalo UHF 0-10 degrees, VHF 15 degrees, Toronto UHF/VHF 73 degrees
CM 7-36 sweep
CMD--EVAL --num-cores=3 -a15 -f "{177:(20,10),183:(68,-2),213:(180,-2),473:(2,0),479:(2,0),485:(2,15),491:(68,-2),497:(68,-2),503:(68,-2),509:(68,-2),521:(167,0),527:(167,0),533:(5,15),539:(68,-2),545:(68,-2),563:(5,0),569:(68,-2),575:(2,0),581:(2,0),587:(10,15),593:(14,14),599:(35,-10),605:(14,14)}"
'CMD--EVAL --num-cores=3 -a15 -f "{177:(15,10),183:(73,-2),213:(175,-2),473:(7,0),479:(7,0),485:(7,15),491:(73,-2),497:(73,-2),503:(73,-2),509:(73,-2),521:(162,0),527:(162,0),533:(0,15),539:(73,-2),545:(73,-2),563:(0,0),569:(73,-2),575:(7,0),581:(7,0),587:(5,15),593:(10,14),599:(40,-10),605:(9,14)}"
CMD--EVAL --num-cores=3 -a15 -s(174,6,8) -s(470,6,24)
CE

SY radius=0.003175
SY narod_surf_spacing=0.006
SY narod_spacing=0.012

SY feed=0.02234425' 0.01, 0.1

SY b=0.08585346' 0.075, 0.25
SY a1=0.2163275' 0.07, 0.22
SY _G3=0.0897322' 0.006, 0.1
SY a2=a1+feed-_G3'this is to avoid self intersection since _G3 is to be > radius+2.5mm
SY a3=0.1612746' 0.07, 0.22



SY x=-0.07380462' -0.12, -0.05
SY g1=0.003137981' 0.002, 0.05
SY g2=0.04948797' 0.002, 0.05
SY g3=0.04936938' 0.002, 0.05
SY g4=0.04981541' 0.002, 0.05
SY l1=0.4386441' 0.1, 0.6
SY l2=0.2959753' 0.1, 0.6
SY l3=0.6151487' 0.5, 0.7
SY l4=0.6479946' 0.1, 0.65

SY n_h=0.102261' -0.01, 0.14
SY n_f_dx=0
SY n_top_dy=-0.00532808' -0.04, 0.04
SY n_b_taper=0.009290001' -0.001, 0.04
SY n_top=_G3+a3+n_top_dy- n_b_taper/2'hat head size
SY n_f=x + n_f_dx'so the hat does not tilt behind the reflectors


SY narod_top = a1+a2+a3+narod_spacing+n_h'want to put 3 reflectors between z=very_small and z=narod_top +/- very_small,  1 reflectors around narod_top and 1 above it
SY dz3=0.1794035' 0.017, 0.18
SY above_below=-1
SY sign = abs(above_below)/above_below' may fail at 0

SY z3 = sign*dz3+narod_top
SY dz = z3/5

SY dz1=1.212793' 0.2, 2
SY z1 = (1+(dz1-1))*dz
SY dz2=0.6925457' 0.2, 2
SY z2 = (3+(dz2-1))*dz


SY dz4=0.2923525' 0.05, 0.3
SY z4=z3+dz4

SY ay1=feed+a1
SY ay2=feed+a1-a2
SY ay3=feed+a1-a2+a3
SY ay4=feed+a1-a2+a3+b
SY az2=a1+a2
SY az3=a1+a2+a3
SY n_b_z=az3+narod_spacing
SY n_b_y1=n_top+n_b_taper
SY n_b_y2=n_b_y1+b

SY n_z_coef=1.028491' 0.5, 1.4
SY n_zsz=0.4209714' 0.3, 0.55
SY n_0sz=0.4559442' 0.3, 0.55
SY n_x_diff=0.2801081' 0.15, 0.4
SY n_x = x-n_x_diff
SY n_z = narod_top*n_z_coef


GW 1 25 0 feed 0 0 ay1 a1 radius'#00f
GW 2 17 0 ay1 a1 0 ay2 az2 radius'#00f
GW 3 19 0 ay2 az2 0 ay3 az3 radius'#00f
GW 4 7 0 ay3 az3 0 ay4 az3 radius'#00f
GW 5 35 x g1 z1 x l1+g1 z1 radius'#0f0
GW 6 23 x g2 z2 x l2+g2 z2 radius'#0f0
GW 7 49 x g3 z3 x l3+g3 z3 radius'#0f0
GW 8 51 x g4 z4 x l4+g4 z4 radius'#0f0
GW 11 10 n_f n_top n_b_z+n_h 0 n_b_y1 n_b_z radius'#000
GW 12 7 0 n_b_y1 n_b_z 0 n_b_y2 n_b_z radius'#000
GX    20    010
GW 13 39 n_f -n_top n_b_z+n_h n_f n_top n_b_z+n_h radius'#000
GW 15 67 n_x -n_zsz n_z n_x n_zsz n_z radius'#D00
GX    40    001
GW 16 73 n_x -n_0sz 0 n_x n_0sz 0 radius'#D00
GW 100 3 0 -feed 0 0 feed 0 radius*.8675'#f40
GE    0
LD    5    0    0    0    24900000
GN    -1
EK
EX 0 100 2 0 1
FR    0    0    0    0    800    0
EN

1 - 3 of 3 Posts
Top
